How to Check Alternator Output With a Multimeter

Your car cranks fine one morning, then the battery's dead the next. Learning how to check alternator output with a multimeter is the fastest way to know whether your charging system is doing its job. A multimeter is a small handheld tool that measures voltage, and it turns a guessing game into a two-minute test.

You don't need a shop, a lift, or any special training.

The target is simple. A healthy alternator should push 13.8 to 14.4 volts into the battery while the engine runs, a spec confirmed across most manufacturer service data as of 2026. Anything well below or above that range points to a problem.

Here's why the meter beats the guesswork every time.

Quick Answer

Set your digital multimeter to 20V DC. Touch the red probe to the battery's positive post and the black probe to the negative post. Start the engine and read the display.

A healthy alternator shows 13.8 to 14.4 volts. Below 13.5 or above 14.8 volts signals a charging fault.

Why a Multimeter Beats Guesswork for Testing Your Alternator

Plenty of folks still use the old headlight trick. They rev the engine and watch if the lights brighten. It works in a pinch, but it tells you almost nothing about the real numbers.

A multimeter gives you exact voltage, and voltage is the whole story with a charging system. You'll see if the alternator is undercharging, overcharging, or sitting right where it should. The eyeball test can't catch a slow undercharge that's quietly killing your battery.

There's a money angle too. Swapping an alternator on a hunch is an expensive mistake when the real culprit is a tired battery or a loose belt. Our research into repair-forum reports shows misdiagnosis is one of the most common reasons people replace good parts.

A reading of a few seconds saves you from that. If you'd rather rule out the battery first, this walkthrough on reading battery voltage at the terminals covers the baseline check.

What a Healthy Alternator Reading Actually Looks Like

A healthy alternator reads 13.8 to 14.4 volts at the battery with the engine running. That's the sweet spot. Some vehicles spec up to 14.7 volts, which is still fine.

The reason the number sits above 12 is simple. The alternator has to overpower the battery's resting voltage to force a charge back in. If it only matched the battery, nothing would flow.

Here's a quick reference to keep in mind at the meter:

One more thing worth knowing. The voltage should hold steady or climb slightly when you rev the engine. If it drops as you add electrical load, that's a red flag we'll test for later.

Battery or Alternator? How to Tell Them Apart First

Start here, because a dead battery and a dead alternator feel identical from the driver's seat. Both leave you stranded. The meter sorts them apart in under a minute.

Test the battery with the engine off first. A fully charged 12-volt battery rests at about 12.6 volts. If it reads 12.0 volts or lower, the battery is discharged or failing, and that alone can mimic alternator trouble.

Then start the engine and read again. Here's the logic:

• If voltage jumps to 13.8 to 14.4 V, the alternator is charging. Your problem is likely the battery.
• If voltage stays flat or barely moves, the alternator isn't feeding the system.
• If the engine won't start at all, charge or swap in a known-good battery before blaming the alternator.

A quick note on batteries. Different types behave a little differently, so if you're running an absorbed glass mat battery or a deep cycle setup in an RV or boat, check its own resting spec first. No multimeter handy?

There are a few rough field checks that get you a ballpark answer.

Tools You Need and the Right Multimeter Settings

You don't need much. A basic digital multimeter, the two probes it came with, and safety glasses cover it. A rag for wiping grease off the terminals helps too.

Here's the short kit list:

• Digital multimeter (auto-ranging or manual, both work)
• Red and black test leads with sharp probe tips
• Safety glasses
• Gloves, optional but smart near a battery

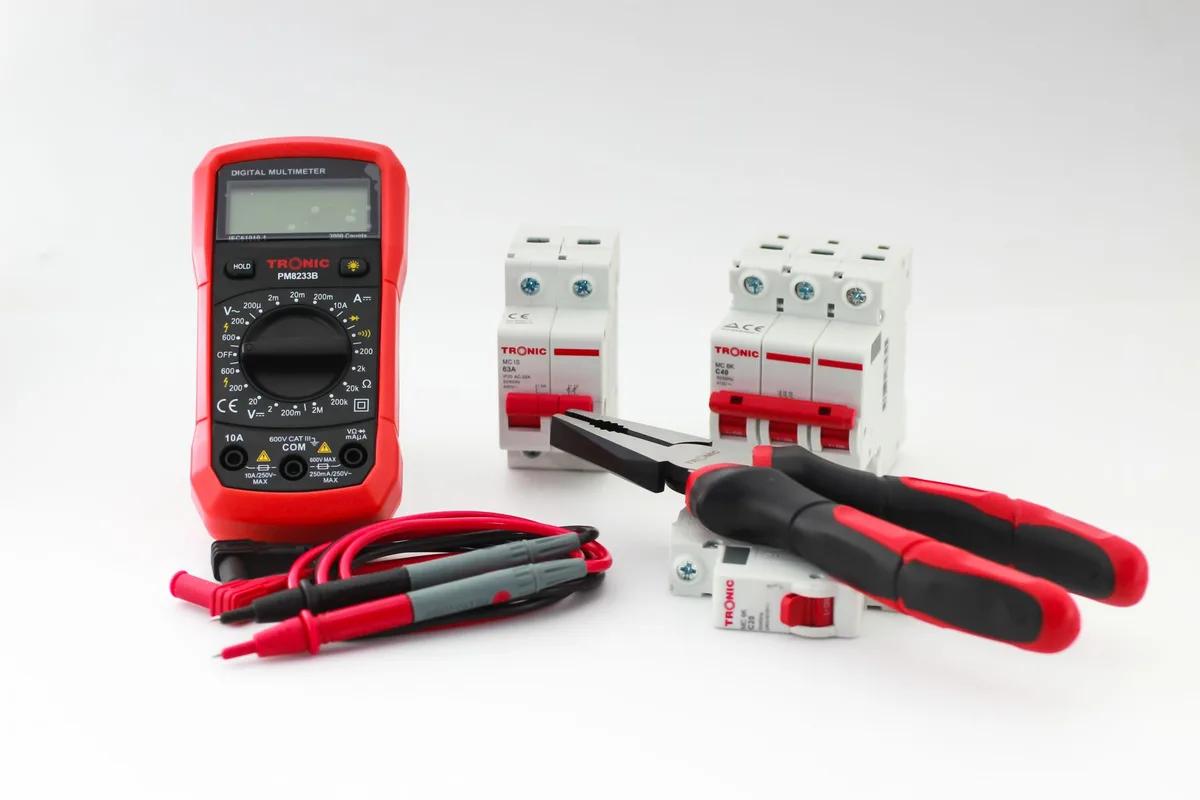

Setting Your Meter to 20V DC

Turn the dial to DC voltage, then pick the 20V range. On the dial it looks like a V with a straight line and dashes above it (V⎓). A 12-volt system reads around 14 volts max, so 20V covers it cleanly.

If your meter is auto-ranging, just select DC volts and it handles the rest. This short guide on dialing in the 20V DC range walks through it if the symbols throw you.

DC vs. AC Mode and Why It Matters

Almost every test here uses DC, because your car's electrical system runs on direct current. But there's one exception. A worn diode inside the alternator leaks AC voltage into the DC output, and you catch that by switching to AC volts later.

Fluke, a well-known meter maker, publishes clear notes on DC versus AC measurement if you want the deeper background. For now, remember DC for output, AC for the ripple test. Picking the wrong mode is the top reason readings look strange, so double-check the right setting for a car battery before you probe.

Safety Checks Before You Touch Anything Under the Hood

A car battery holds enough current to cause a nasty burn, and the engine bay has spinning parts. Take two minutes here before you start.

Run through this quick list:

• Park on level ground and set the handbrake.
• Put the car in Park or Neutral.
• Pop the hood and locate the belt, pulley, and fan. Keep hands and leads clear of them.
• Remove rings, watches, and dangling sleeves.
• Put your safety glasses on.

Batteries vent hydrogen gas, which is flammable. No smoking, no sparks, no open flame near the battery. Work in a ventilated spot, not a sealed garage.

Never let a metal tool or probe bridge the two battery posts. That short can throw sparks and damage the battery. Steady each probe with one hand and keep them apart.

With the setup safe and the meter set, you're ready to take the readings.

Step-by-Step: Checking Alternator Output With a Multimeter

With the meter on 20V DC and your glasses on, you're ready to run the full sequence. Work through these five steps in order. Each one adds a piece to the picture.

Step 1 — Test Resting Battery Voltage (Engine Off)

Touch the red probe to the positive post and the black probe to the negative post. Read the display with everything off. You want to see around 12.6 volts.

If it reads 12.4 or lower, charge the battery before going further. A weak battery skews every reading that follows. This is your baseline number, so write it down.

Step 2 — Start the Engine and Read Charging Voltage

Keep the probes on the posts and start the engine. Let it settle at idle. The voltage should climb into the 13.8 to 14.4 range within a few seconds.

That jump means the alternator kicked in. If the number barely moves off 12.6, the alternator isn't charging. If the engine struggles to crank first, it's worth checking the starter draw too.

Step 3 — Rev to 2,000 RPM and Watch the Numbers

Hold the throttle so the engine sits near 2,000 RPM. Watch the display. A good alternator holds steady or rises slightly, never dropping.

If voltage climbs past 14.8 volts here, suspect an overcharging regulator. If it sags below 13.5, the alternator is struggling to keep up under speed.

Step 4 — Load Test With Headlights, AC, and Accessories On

Keep the engine running and switch on the headlights, AC or blower, rear defroster, and radio. This forces the alternator to work hard. Voltage will dip a little, and that's normal.

What you don't want is a drop below 13.0 volts under load. That signals an alternator that can't meet demand. For a deeper stress check on the battery side, this load-testing method pairs well with it.

Step 5 — Run the AC Ripple Test for Bad Diodes

Switch the meter to AC volts (V~) and keep the probes on the battery posts with the engine running. You're checking for AC leaking into a DC system. A healthy alternator reads under 0.05 volts AC, or 50 millivolts.

A reading above that points to a failed diode in the rectifier. That often shows up as a whining noise or flickering lights. If you get a high number, confirm it by testing the alternator diodes directly.

Reading the Results: What Your Voltage Numbers Mean

Now you've got a set of numbers. The pattern across them tells you more than any single reading. Here's how to translate what you saw.

Undercharging Signs

Undercharging means the alternator can't push enough voltage to keep the battery full. You'll see running voltage below 13.5, or a load reading that collapses under 13.0. The usual suspects are a worn alternator, a slipping belt, or a loose connection.

Check belt tension first, since it's free to fix. A glazed or loose belt slips under load and starves the output. If the belt is tight and clean, the alternator itself is likely tired.

Overcharging Signs

Overcharging shows up as steady readings above 14.8 volts, sometimes past 15. That's almost always a failed voltage regulator. It's dangerous because it cooks the battery and can boil off electrolyte.

Don't ignore a high reading thinking more voltage is better. Overcharging shortens battery life fast and can warp plates. Get the regulator or alternator replaced promptly.

The Voltage Drop Test for Corroded Cables

Sometimes the alternator is fine but corroded cables steal the voltage. Test this by reading across a cable while the engine runs. A good cable shows under 0.2 volts of drop end to end.

Anything higher means resistance is eating your charge. This full voltage drop procedure shows where to place the probes. Cleaning the battery terminals and inspecting the battery cables often clears a phantom undercharge.

Common Mistakes That Give You a False Reading

Most bad diagnoses come from a handful of simple slips. Knowing them saves you from chasing the wrong part. Here are the ones we see most often.

• Leaving the meter on AC when testing output. You'll get a tiny nonsense number instead of ~14 volts.
• Testing a dead battery first. A discharged battery drags the whole reading down and hides a good alternator.
• Probing a loose or corroded terminal. Poor contact reads low and mimics a weak alternator.
• Ignoring the belt. A slipping belt looks exactly like a failing alternator on the meter.
• Skipping the load test. Some alternators pass at idle but fail the moment you add demand.

One more trap. A voltage that looks perfect at idle but drops under accessories is easy to miss if you stop early. Always run the load step before you call it healthy.

Multimeter vs. Clamp Meter vs. Store Bench Test

Each method answers a slightly different question, so pick the one that fits. A multimeter measures voltage, a clamp meter measures current, and a store bench test loads the alternator on a machine. Here's how they stack up.

A multimeter is the right first tool for almost everyone. It's cheap and tells you whether the system is charging at all. If the voltage looks fine but the battery still drains, a clamp meter confirms whether the alternator delivers its rated amps.

The store test has its place too. Many auto-parts chains run a free charging-system check. It's a solid backup when your meter readings are borderline and you want confirmation before spending money.

Pro Tips for Faster, More Accurate Diagnosis

A few small habits sharpen every test. These come straight from patterns in technician feedback. They cut down on repeat testing.

• Warm the engine first. Cold alternators read a touch high for the first minute, then settle.
• Wiggle the probes on the posts to break through surface corrosion for a clean contact.
• Test twice, once cold and once warm, if a reading sits right on a threshold.
• Note your baseline resting voltage before starting, so the running jump is obvious.
• Keep a battery you know is good on hand to rule out battery faults quickly.

If your battery keeps dying overnight but the alternator tests fine, the fault is elsewhere. That usually points to a parasitic current draw or a weak ground connection. Both are quick follow-up checks with the same meter.

When to Stop Testing and Call a Mechanic

Some findings mean it's time to hand it off. If your readings point to a problem you can't safely fix, that's the line. Here's when to stop.

• Steady overcharging above 15 volts. That can damage the battery and wiring fast.
• Voltage that swings wildly while the engine holds steady RPM. It suggests a failing regulator or internal fault.
• A high AC ripple reading you've confirmed twice. Diode repair means opening the alternator.
• Any burning smell, smoke, or a hot alternator housing. Shut it down and get help.

There's no shame in stopping here. A meter tells you what's wrong, not always how to fix it. Confirming the fault first still saves you money at the shop, because you can describe the exact symptom.

Frequently Asked Questions

What voltage should an alternator put out?

A healthy alternator puts out 13.8 to 14.4 volts at the battery with the engine running. Some vehicles read up to 14.7 volts, which is still fine. Anything below 13.5 or above 14.8 volts points to a charging fault worth investigating.

Can I test an alternator without removing it?

Yes, and that's the whole point of the multimeter method. You test it in the car by reading voltage right at the battery posts while the engine runs. Removing the alternator is only needed for a bench test or internal diode repair.

Why does my alternator read good voltage but the battery still dies?

Good voltage with a dying battery usually means something is draining it while parked. That's a parasitic draw, often a stuck relay or an accessory that won't shut off. A weak ground or a failing battery that won't hold charge can also cause it.

What does a bad alternator diode read on a multimeter?

A bad diode shows AC voltage above 0.05 volts (50 millivolts) at the battery with the engine running. Switch your meter to AC volts to catch it. High ripple often comes with a whining noise or dimming lights.

Do I need the engine running to test alternator output?

Yes, the engine must be running to test alternator output. The alternator only generates voltage while it spins. You take a resting reading first with the engine off, then compare it to the running voltage to confirm the alternator is charging.

Is it safe to disconnect the battery to test the alternator?

No, don't pull the battery terminal with the engine running to test the alternator. That old trick can spike voltage and fry sensitive electronics. Keep the battery connected and measure voltage across the posts instead.
