What Should Alternator Voltage Be? Normal Range Explained

If you've hooked up a meter and you're staring at a number wondering what should alternator voltage be, here's the honest truth: there isn't one magic figure. A healthy charging system lives in a range, and where you land depends on whether the engine's running, how warm things are, and what electrical load is switched on. Most drivers just want to know if their reading is normal or a warning sign.

That's what we'll sort out here. As a rough anchor, a warm engine at idle should push around 13.8 to 14.7 volts at the battery, a spec echoed across manufacturer service data as of 2026. Go too far below or above that band and something's off.

Let's start with the fast answer, then read your own numbers with confidence.

Quick Answer

Alternator voltage should read about 13.8 to 14.7 volts. Measure it at the battery with the engine running and warm. At idle, anything in that band is healthy.

Below 13.5 volts usually means undercharging. Sustained readings above 15 volts point to overcharging and a bad regulator.

Why Your Charging Voltage Isn't Just One Fixed Number

The alternator doesn't hold one flat voltage all day. It's controlled by a voltage regulator, a small device that raises or lowers output to match what the system needs right now. Think of it like cruise control for electricity.

Three things move the number around:

• Engine state. Off, you're reading the battery alone. Running, you're reading the charging system at work.
• Temperature. Cold batteries want a slightly higher voltage. Hot ones want less. Many modern systems adjust automatically.
• Electrical load. Flip on the headlights, rear defroster, and AC blower, and the regulator works harder to keep up.

So a reading of 14.6 volts on a freezing morning and 13.6 volts on a hot day with everything switched on can both be perfectly fine. The trick isn't chasing one number. It's knowing which number is right for your situation.

That's why this is a decision, not a single fact.

Healthy Voltage Ranges: Engine Off, At Idle, and Under Load

Here's the fastest way to read your numbers. Match your test condition to the range below, and you'll know instantly whether you're in good shape.

Resting Battery Voltage (Engine Off)

A fully charged 12-volt battery reads about 12.6 to 12.7 volts with the engine off. Drop to roughly 12.4 volts and you're near 75 percent. Around 12.2 volts is half charged, and 12.0 volts is nearly flat.

One catch: a fresh charge leaves a surface charge that can fool the meter high. For a true reading, let the car sit a few hours first, or turn the headlights on for 15 seconds to bleed it off. If you want a walkthrough on getting a clean reading, our guide on taking an accurate battery reading covers the setup step by step.

Charging Voltage at Idle and While Driving

Start the engine and the number should jump. At idle, you want 13.8 to 14.7 volts measured right at the battery terminals. Rev to around 1,500 to 2,000 RPM and it should stay steady in that band, maybe nudging slightly higher.

If the voltage barely rises above resting, or sags below 13.5 with the engine running, the alternator isn't pulling its weight. A full charging-system check is worth doing before you replace anything, and our rundown on confirming alternator output shows how to isolate the fault.

What Changes With Temperature, Load, and Smart Charging

Cold weather raises the target. Many regulators aim for 14.4 to 14.7 volts when the battery's cold, then ease down toward 13.6 to 14.0 volts once things warm up. That's temperature compensation, and it's normal.

Smart charging systems throw people off the most. On many newer cars, the ECU deliberately drops charging voltage to 12.5 to 13.2 volts during steady cruising to save fuel. It ramps back up when the battery needs it.

So a "low" reading on a modern car isn't always a fault. It might just be the system being efficient.

How the Charging System Actually Sets Your Voltage

The alternator makes AC power as its rotor spins inside the stator. That AC gets converted to DC by the rectifier, a set of diodes that only let current flow one way. The voltage regulator then controls the field current to hold output where it should be.

Here's the part most people miss. Those diodes matter for more than voltage. If one fails, you get AC ripple bleeding into your DC system, which can quietly wreck a battery and confuse sensitive electronics.

A standard voltmeter might still show a "normal" 14 volts while a bad diode hides underneath.

The regulator gets its target from either a built-in circuit or the car's ECU on smart-charging vehicles. The Society of Automotive Engineers publishes the standards that shape how these systems behave, and you can read more about their work at SAE International. The takeaway: your voltage number is the end result of several parts working together, so a bad reading doesn't automatically mean the alternator is toast.

Testing Alternator Voltage With a Multimeter, Step by Step

You only need a basic digital multimeter for this. Set it to DC volts on the 20-volt range so you can read cleanly to two decimal places. If you're unsure how to dial that in, our quick note on choosing the 20V DC range clears it up in a minute.

The Baseline Test (Engine Off)

Start with the engine off. Touch the red probe to the positive terminal and the black probe to the negative. Note the number.

It should sit near 12.6 volts on a healthy battery. If you'd rather double-check the meter setting first, here's a simple reference on the correct dial position for a car battery.

The Running and Rev Test

Now start the engine and read again at the terminals. You want to see it climb into the 13.8 to 14.7 band. Hold the RPM around 1,500 to 2,000 and watch that it stays stable.

A number that swings wildly or won't rise is a red flag.

The Load Test (Lights, AC, Blower On)

With the engine running, switch on the headlights, rear defroster, and blower on high. This forces the alternator to work. Voltage may dip slightly, but it should hold above 13.0 to 13.5 volts.

If it collapses under load, the charging system can't keep up, and a proper under-load battery check helps confirm whether the battery or the alternator is the weak link.

Checking AC Ripple for a Bad Diode

This is the test most people skip. Switch your meter to AC volts while the engine runs. On a healthy system you'll see under 0.05 volts, or 50 millivolts, of AC.

Anything past about 0.1 volts suggests a failing diode in the rectifier. Our walkthrough on spotting a failed rectifier diode explains what those numbers mean and what to do next.

Reading Your Numbers: A Voltage Decision Tree

Once you've got a reading, matching it to the right branch tells you what to do next. Use the load test result, since that's where weak systems show their true colors.

If You're Reading Below 13.5V (Undercharging)

Below 13.5 volts with the engine running, your battery isn't getting enough charge. First, rule out a slipping or glazed drive belt, since a loose belt kills output fast. Then check for a worn regulator or tired brushes inside the alternator.

If the voltage sits near 12.4 volts running, the alternator may not be charging at all. On a smart-charging car, though, a brief dip to 12.8 volts during cruising can be normal. Watch whether it recovers when you add load.

If You're Sitting at 13.8 to 14.7V (Normal)

This is the sweet spot, and your charging system is doing its job. Confirm the number holds under load and that AC ripple stays under 50 millivolts. If both check out, the alternator is healthy and you can look elsewhere for the fault.

If You're Above 15V (Overcharging)

Sustained readings over 15 volts mean the regulator has lost control. Overcharging boils the electrolyte, warps plates, and shortens battery life quickly. On flooded batteries you may smell a rotten-egg odor from off-gassing.

Shut it down and get the regulator or alternator checked before you cook the battery.

Battery vs. Alternator vs. Wiring: Pinning Down the Real Culprit

A bad voltage number doesn't automatically mean a bad alternator. Three suspects share the blame, and telling them apart saves money.

• Battery. If resting voltage is low but charging voltage is fine, the battery is likely worn. A quick check works even without a meter, and our tips for a no-meter battery check help in a pinch.
• Alternator. Good resting voltage but poor charging voltage points here. Confirm with a full output test.
• Wiring. Correct output at the alternator but low voltage at the battery means resistance in between.

That third one trips people up. Corroded terminals or a weak ground can drop voltage without either main component being faulty. Run a voltage-drop check across the cables to catch it.

A poor earth is common too, and testing the chassis ground path rules it out fast.

Aim for no more than 0.2 volts of drop across any single cable or connection. More than that, and you've found hidden resistance stealing your charge.

Voltage Targets by Battery Type: Flooded, AGM, and Lithium

Not every battery wants the same charging voltage. The chemistry changes the target, so a "normal" number for one type can undercharge or stress another.

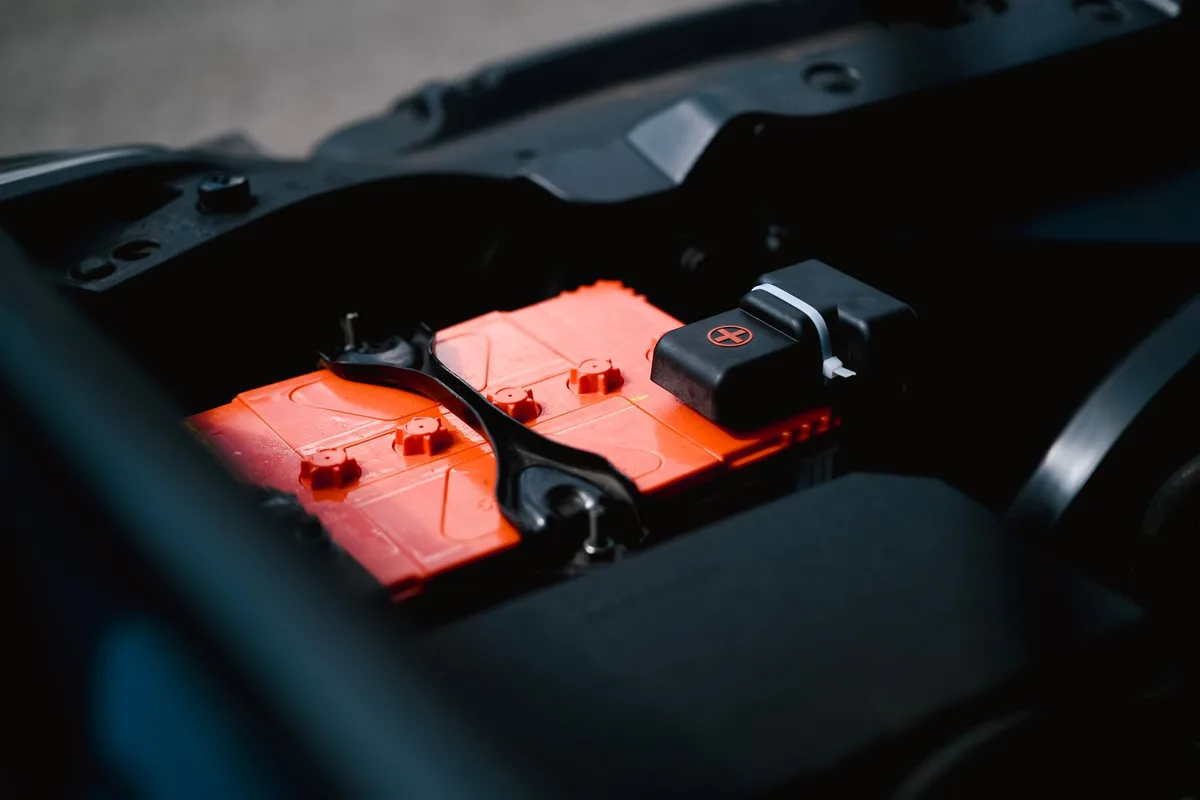

AGM batteries prefer the upper end and don't like being undercharged. If yours reads 13.6 volts running, it may slowly starve. Verifying the pack with an AGM-specific voltage test confirms whether it's holding charge properly.

Lithium drop-in batteries are pickier still. They need a charging profile their BMS accepts, and some older alternators push voltage too high for them. Deep-cycle setups in RVs and boats follow their own rules, and checking a house battery's health is a separate job worth doing right.

Common Mistakes That Fool a Voltage Test

Even a correct meter can lie if your method is off. These are the errors we see trip people up most.

• Testing a surface charge. Right after a drive or charge, voltage reads falsely high. Let the car rest first.
• Skipping the AC ripple check. A "normal" 14 volts can hide a dead diode. Always check AC volts too.
• Probing the wrong spot. Reading at the alternator instead of the battery hides wiring loss.
• Ignoring load. Voltage often looks fine at idle and collapses only under strain.
• Cold vs. warm confusion. A higher cold reading is normal, not a fault.

One more: dirty or loose probe contact. If your numbers jump around, wiggle the probes onto clean metal. A bad terminal connection can also mimic a charging fault, so inspecting the terminal contact is worth a minute.

Safety Rules Before You Touch the Battery

Batteries deserve respect, because they store real energy and vent explosive gas. A charging flooded battery releases hydrogen, which ignites from a single spark. Keep flames and cigarettes well away, and work in a ventilated spot.

• Wear eye protection. Battery acid burns skin and eyes on contact.
• Never disconnect the battery while the engine runs. On modern cars, the voltage spike can fry the ECU.
• Remove metal jewelry. A ring across terminals can weld itself and burn you.
• Connect the ground probe last and remove it first.

If you smell rotten eggs or see the case bulging, stop. That's a battery venting or overheating, and it needs to cool and be replaced, not tested. Follow your vehicle's service manual for the exact charging specs and safe handling steps.

Pro Tips for Trusting Your Readings

A few habits separate a clean diagnosis from a wild goose chase. These come straight from how experienced techs work through a charging complaint.

• Test at the battery, not the alternator. That way you catch any wiring loss in one shot.
• Warm the engine first. Cold readings run higher and skew your judgment.
• Take three readings: resting, idle, and under load. One number alone never tells the full story.
• Log the exact figures. "About 14" isn't useful. "14.3 at idle, 13.6 under load" is.

Keep your meter's battery fresh, too. A weak meter can drift low and send you chasing a fault that isn't there. If your numbers ever look strange, confirm the meter against a known-good battery before condemning the car.

When to Stop DIY-ing and See a Mechanic

Some findings are your cue to hand it off. Voltage readings tell you a lot, but a few faults need a shop's tools and experience.

• Sustained overcharging above 15 volts. Keep driving and you'll ruin the battery and risk electronics.
• High AC ripple with a healthy-looking DC number. That means internal diode failure.
• Voltage that swings erratically. This points to a failing regulator or internal short.
• Repeated flat batteries with "normal" charging voltage. A hidden parasitic draw may be the culprit, and pinning down a phantom drain often needs deeper testing.

There's no shame in it. If the belt, grounds, and terminals all check out but the numbers still don't add up, a technician with a bench tester can load the alternator properly and settle it.

Frequently Asked Questions

Is 14.7 volts too high for an alternator?

No, 14.7 volts sits at the top of the healthy range and is usually fine, especially on a cold engine or an AGM battery. Watch for a steady climb past 15 volts, though. Sustained readings above 15 signal an overcharging fault in the regulator.

Why is my alternator only putting out 13 volts?

A steady 13 volts running is on the low side and often means undercharging. Common causes are a slipping belt, worn brushes, or a tired regulator. On a smart-charging car, a brief dip to 13 volts during cruising can be normal if it recovers under load.

Should I test alternator voltage at idle or while driving?

Test both. Idle shows the baseline, and revving to 1,500 to 2,000 RPM confirms output under light load. Then add electrical load to see if it holds.

A healthy system stays inside 13.8 to 14.7 volts across all three.

Can a good voltage reading still mean a bad alternator?

Yes. A normal 14-volt DC reading can hide a failed rectifier diode. Switch your meter to AC volts and check for ripple.

More than 50 millivolts of AC points to a diode fault even when DC voltage looks fine.

Does cold weather change the right voltage?

Yes. Cold batteries need a higher charge, so many regulators target 14.4 to 14.7 volts when cold. As the engine warms, voltage eases toward 13.8 to 14.2.

A slightly higher winter reading is normal, not a fault.

Your Quick Decision Guide for Alternator Voltage

Here's the whole thing boiled down to a fast check you can run in your driveway.

• Engine off: expect 12.4 to 12.7 volts. Lower means a discharged or weak battery.
• Engine running, warm: expect 13.8 to 14.7 volts at the battery. That's your healthy target.
• Under load: should hold above 13.5 volts. A collapse means the system can't keep up.
• AC ripple: keep it under 50 millivolts. Higher points to a bad diode.
• Over 15 volts sustained: stop and fix the regulator before it cooks the battery.

Match your reading to the right line, factor in temperature and your battery type, and you'll know whether you're looking at a healthy charging system or a fault worth chasing. Nail those three readings, resting, idle, and load, and you've done what most shops charge for.
