How to Test an AGM Battery With a Multimeter

Here's the frustrating part about AGM batteries: they rarely warn you before they quit. Knowing how to test an AGM battery with a multimeter is the cheapest way to catch that failure before it strands you. A basic meter and five quiet minutes tell you more than any dashboard warning light.

You don't need a shop or fancy gear.

AGM stands for Absorbed Glass Mat, a sealed lead-acid design that holds its acid in fiberglass matting instead of free liquid. A healthy 12V AGM battery rests around 12.8 to 13.0 volts when fully charged, a touch higher than an older flooded battery. As of 2026, most start-stop vehicles roll off the line with AGM from the factory.

Let's start with why the failures sneak up on you.

Why a Bad AGM Battery Fools You Before It Leaves You Stranded

AGM batteries hide their age well. They keep strong cranking power almost to the end, then drop off a cliff. That's the trap.

A big reason is surface charge. Right after driving or charging, the plates hold a temporary voltage boost. Your meter reads 12.9 volts and you relax.

But that number can mask a battery sitting at 60% real capacity underneath.

The second trap is load. A weak AGM battery can show a healthy resting voltage and still collapse the moment the starter pulls hard. Voltage alone is only half the story.

That's why our research keeps pointing back to the same rule: test it rested, then test it under a real load.

Here's what a smart check catches early:

• A battery slowly losing capacity from sulfation
• A parasitic draw quietly flattening it overnight
• A charging system that's overcharging or starving the battery
• A cell going bad while the others look fine

If you want the fuller picture beyond voltage, a proper under-load check is the next step after the basics here.

The 30-Second Answer: What a Healthy AGM Battery Reads

Set your multimeter to DC volts, 20V range. Touch the red probe to the positive terminal. Touch the black probe to the negative terminal.

A rested, fully charged 12V AGM battery reads 12.8 to 13.0 volts. Anything at or below 12.4 volts means it's half charged or worse.

For an accurate number, let the battery rest 12 to 24 hours first. Skip that, and surface charge inflates the reading. A load test confirms whether the battery is truly healthy or just holding a false high.

AGM vs Flooded Lead-Acid: Why the Voltage Numbers Aren't the Same

Don't judge an AGM battery by a flooded battery's chart. AGM cells have lower internal resistance and sit slightly higher across the board. Use the wrong reference and you'll condemn a good battery or trust a tired one.

The gap is small but it matters at the edges. A flooded battery at 12.6 volts is basically full. An AGM battery at 12.6 volts is already down around 75%.

Here's the side-by-side at roughly 77°F (25°C), rested:

One more difference: AGM batteries are sealed. You can't pop a cap and drop in a hydrometer like you can with a flooded cell. A multimeter is your main window into what's going on inside.

That's exactly why getting the voltage reading right matters so much on these packs.

What Your Multimeter Actually Measures (and What It Can't)

A multimeter measures voltage, and voltage is a snapshot of state of charge. It tells you how full the battery is at that moment. It does not directly measure capacity or health.

Think of it like a fuel gauge versus the size of the tank. Voltage shows how much charge is sitting there. It won't tell you the battery has lost a third of its ability to hold that charge.

For that, you need a load test or a conductance tester.

A decent digital multimeter still does plenty:

• Resting voltage, for state of charge
• Cranking voltage, watched live while the engine starts
• Charging voltage, with the engine running
• Parasitic draw, in DC amps, wired in series

Accuracy matters here. A quality meter with ±0.5% tolerance and two-decimal resolution lets you trust a 0.1-volt difference. Manufacturers like Fluke publish accuracy specs right in the manual, and cheaper meters often drift.

If your reading jumps around, warm, clean contact on bare metal usually settles it. When you're ready to move past voltage into current, the process for measuring current draw uses the same meter in a different mode.

Before You Touch a Probe: Rest, Temperature, and Surface Charge

Prep decides whether your reading means anything. Three things throw off AGM voltage more than anything else: surface charge, temperature, and a battery that isn't at rest. Handle those first.

Surface charge is the big one. After a drive or a charger session, the battery reads high for hours. To get true resting voltage, let it sit 12 to 24 hours with everything off.

In a hurry? Turn on the headlights for 15 to 30 seconds to bleed off the surface charge, then wait a minute and test.

Temperature shifts the number too. Cold batteries read lower, warm ones read higher. The charts above assume about 77°F.

As a rough guide, voltage drops close to 0.01V for every degree below that mark. In winter, a slightly low reading may be the cold, not a dying battery.

Run through this quick pre-test checklist:

• Turn off the ignition, lights, and every accessory
• Let the battery rest, ideally 12 to 24 hours
• Clean any corrosion off the terminals for solid contact
• Note the rough temperature so you can read the chart honestly
• Set the meter to DC volts before the probes touch metal

Nail the prep and the rest is easy. A rested, clean, correctly measured AGM battery gives you a number you can actually act on. If you want the whole sequence in one place later, a complete battery workup ties resting voltage, load, and charging checks together.

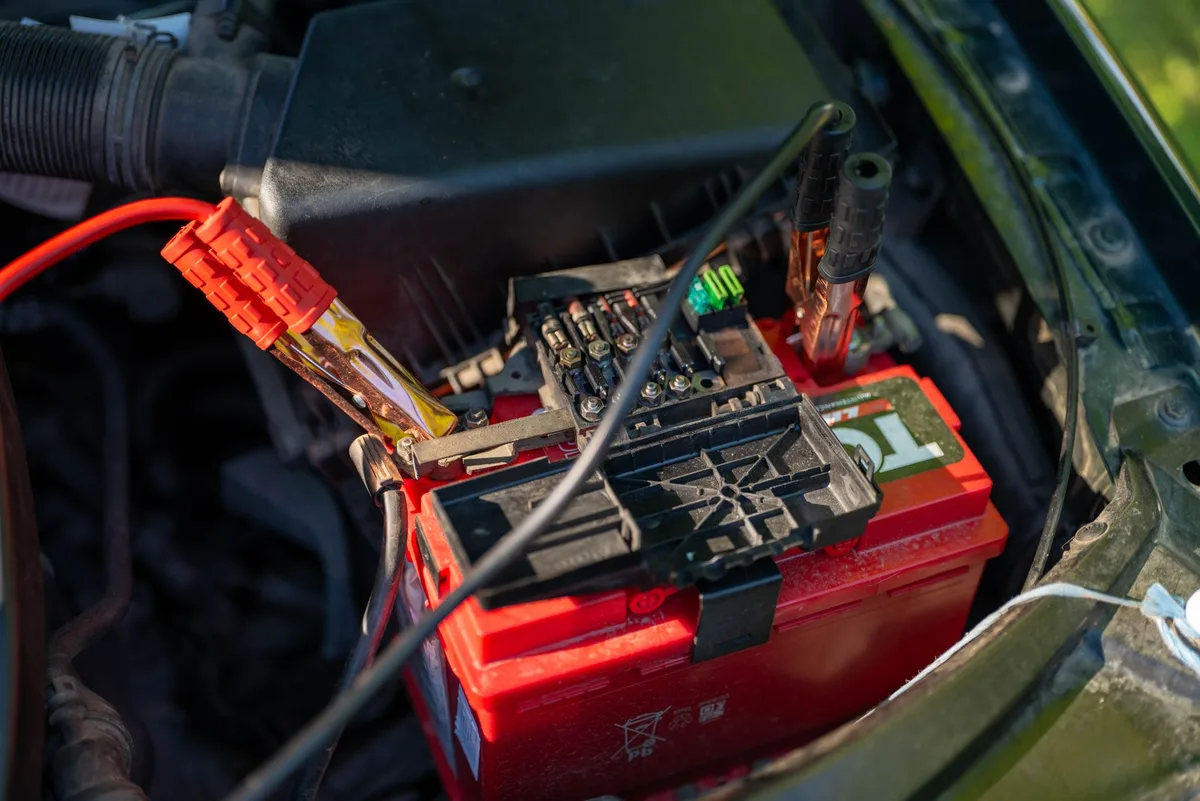

How to Test an AGM Battery With a Multimeter, Step by Step

This is the part that ties it all together. Four quick checks, done in order, give you a full read on the battery and its charging system. Do them in sequence for the cleanest results.

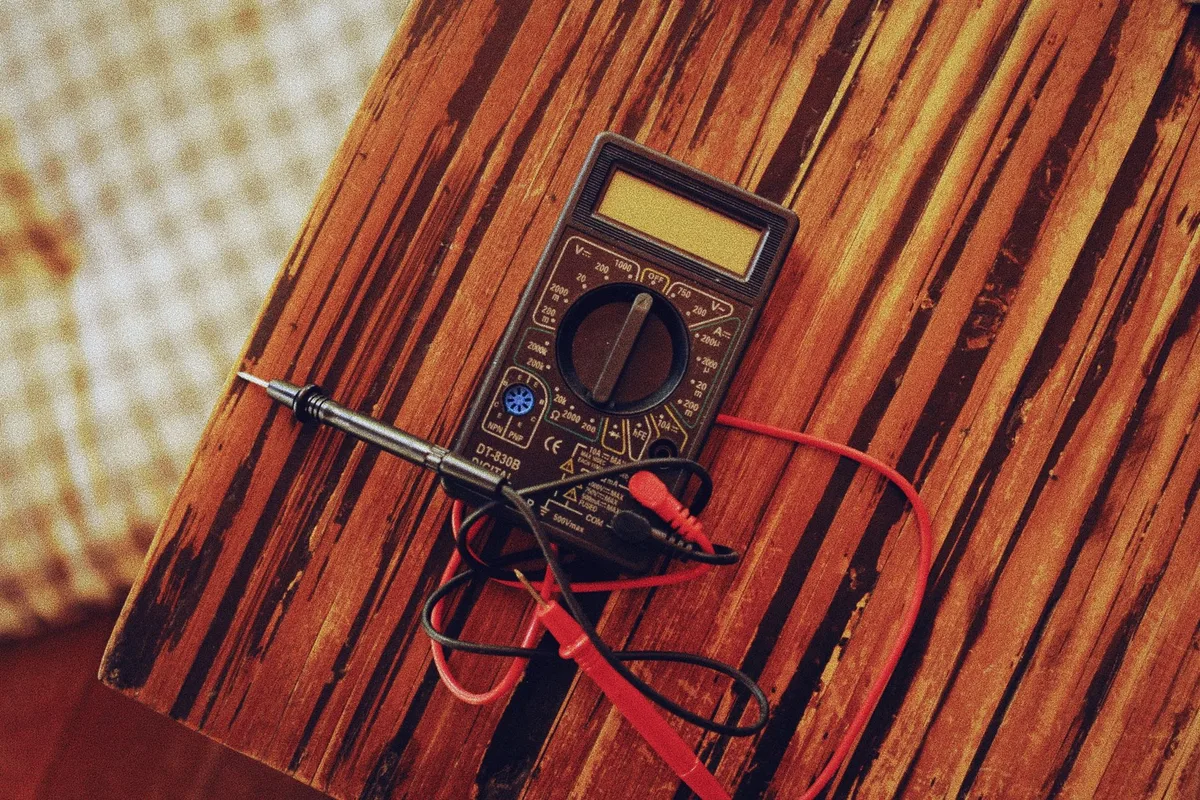

Setting the Meter to DC Volts and Placing the Probes

Set the dial to DC voltage, the V with a straight line above dashes. If your meter isn't auto-ranging, pick the 20V range. That covers a 12V battery with room to spare.

Now the probes. Red goes to the positive terminal, black to the negative. Press firmly onto clean metal, not painted clamp or corrosion.

Reversed probes won't hurt anything. You'll just see a minus sign in front of the number.

Reading Resting (Open-Circuit) Voltage

Read the number with everything off and the battery rested. This open-circuit voltage is your state-of-charge baseline. A fully charged AGM battery lands at 12.8 to 13.0 volts.

If the reading sits at 12.4 volts or lower, the battery is half charged at best. Charge it fully and test again before you judge it. A single low reading on a flat battery proves nothing about its health.

The Cranking Test: Watching Voltage Under Start Load

Watch the voltage live while someone starts the engine. This shows how the battery behaves under real load, which resting voltage can't. Keep the probes on the terminals and eyes on the display.

A healthy AGM battery should stay above 9.6 volts during cranking. If it plunges to 8 volts or drops like a stone, the battery is weak. That sudden collapse is the classic sign of a battery that looks fine at rest but can't deliver.

Checking the Charging System With the Engine Running

With the engine running, the reading should climb to 13.7 to 14.7 volts. That confirms the alternator is charging the battery. Anything outside that window points to a charging problem, not the battery itself.

Below 13.5 volts and the alternator is undercharging, which slowly starves the battery. Above 14.8 volts and it's overcharging, which cooks an AGM battery over time. Both shorten its life, so note the number.

AGM Battery Voltage Chart: Turning Your Reading Into State of Charge

Match your rested reading to a charge level, then act on it. You saw the full AGM column earlier, so here's the short decision version you'll actually use at the terminals.

Remember the temperature caveat from earlier. On a cold morning, a reading that looks a hair low may just be the chill. Warm the numbers in your head before you condemn the battery.

Reading Your Result: Decision Branches for Every Voltage

Here's the if/then logic that turns a number into a next move. Run your rested reading through these branches.

• If it reads 12.8V or higher: the charge is good. Confirm health with a cranking or load test.
• If it reads 12.4V to 12.7V: partial charge. Recharge fully, then retest resting voltage.
• If it reads 12.0V to 12.4V after a full charge: the battery is losing capacity. Load test it.
• If it reads below 12.0V and won't hold a charge: the battery is likely done.
• If resting voltage is fine but cranking voltage crashes below 9.6V: a bad cell or worn plates. Replace it.

One more branch worth flagging. If the battery keeps going flat overnight but tests fine after charging, the problem isn't the battery. It's a parasitic draw or a charging fault, both covered below.

Is It the Battery or the Alternator? Splitting the Diagnosis

Two readings settle this argument fast. Compare the battery at rest against the same battery with the engine running. The gap tells you where the fault lives.

Start with resting voltage, engine off. Say it reads 12.6 volts, healthy enough. Now start the engine and read again.

If it jumps to 13.7 to 14.7 volts, the alternator is doing its job and the battery is your suspect.

Flip the logic if the running voltage stays low. A reading stuck near 12.5 volts with the engine on means the alternator isn't charging. In that case a fresh battery would just drain again.

Aggregate repair reports show plenty of "bad batteries" that were really failing alternators.

Quick reference for the split:

• Rest good, running 13.7, 14.7V, cranking weak: battery fault
• Rest good, running below 13.5V: charging fault (alternator or belt)
• Running above 14.8V: voltage regulator overcharging

Testing for a Parasitic Draw That Kills the Battery Overnight

A parasitic draw is current the car pulls while it's off. A little is normal for clocks and memory. Too much flattens the battery by morning.

This test uses amps, not volts, so the meter setup changes. Move the red probe to the meter's amps jack, usually marked 10A or 20A. Set the dial to DC amps.

You'll wire the meter in series, not across the terminals.

Here's the flow:

• Turn everything off and let the car "sleep" for 20 to 40 minutes.
• Disconnect the negative battery cable.
• Connect the meter between the negative post and the cable you removed.
• Read the current draw once modules power down.

A healthy vehicle at rest pulls under 50mA, or 0.05 amps. Anything over that means something is staying awake. If you see 300mA or more, pull fuses one at a time and watch the reading drop to find the guilty circuit.

A single stuck relay or trunk light can drain an AGM battery in a night or two.

When a Multimeter Isn't Enough: Load Testers and Conductance Testers

A multimeter reads charge, not true capacity. When resting voltage looks fine but the battery keeps failing, you need a tool that measures health directly. Two options fill that gap.

A carbon pile load tester applies a heavy draw and watches how voltage holds. It's the old-school gold standard for capacity. A conductance tester sends a small signal through the battery and estimates health in seconds, no discharge needed.

Here's who each suits best:

• Multimeter: everyday charge checks and charging-system diagnosis
• Load tester: confirming a suspect battery under real strain
• Conductance tester: fast shop checks and reading CCA against the rating

For most owners, a meter plus an occasional load test covers it. Buy a dedicated tester only if you're servicing batteries often.

Mistakes That Give You a False Reading

Most bad readings come from process, not a bad meter. Our research keeps seeing the same handful of errors. Avoid these and your numbers get trustworthy.

• Testing right after driving, so surface charge inflates the voltage
• Judging an AGM battery against a flooded-battery chart
• Probing corroded terminals or painted clamps for weak contact
• Ignoring cold temperature, then condemning a healthy battery
• Trusting resting voltage alone without a load or cranking check
• Leaving accessories on during the test

That last one bites people. Even a dome light pulls the reading down a few hundredths. Kill everything first.

Safety Steps Before You Start Probing

AGM batteries are sealed, but they're still lead-acid. They store serious current and can vent hydrogen gas when charging. A few habits keep the job safe.

• Wear eye protection and gloves near the terminals
• Remove rings, watches, and metal bracelets to avoid shorts
• Work in a ventilated space, never near sparks or flame
• Never let the two probes or a tool bridge both terminals
• Use the correct amps jack and fuse when measuring current

A shorted terminal can melt a wrench and burn you fast. If you spot swelling, a cracked case, or leaking, stop. A damaged battery gets recycled, not tested.

Cold Weather, Storage, and Seasonal Testing

Cold and long storage are where AGM batteries quietly slip. Capacity drops as temperature falls, so winter cranking demands more from a battery that's giving less. A reading that's fine in July may struggle in January.

For stored vehicles like RVs, boats, and motorcycles, self-discharge is the enemy. Check the resting voltage monthly. If it drifts toward 12.4 volts, top it up with a smart charger before it sulfates.

A battery left flat in the cold can freeze and warp its plates. Keep seasonal batteries near full charge and test before you rely on them again.

Frequently Asked Questions

What voltage is bad for a 12V AGM battery?

A rested AGM battery below 12.4 volts is under 50% charged and needs a recharge. If it still reads under 12.4 volts after a full charge, capacity is fading. Below 12.0 volts, treat it as flat and load test before trusting it.

Can I test an AGM battery without removing it?

Yes. Most tests happen with the battery in place. Just turn off the ignition and accessories, clean the terminals, and touch the probes to the posts.

You only disconnect the negative cable for the parasitic draw test, which uses amps.

Do I need to charge an AGM battery before testing it?

For a health verdict, yes. A low reading on a discharged battery tells you nothing about its condition. Charge it fully, let it rest 12 to 24 hours, then read resting voltage and load test to judge the battery honestly.

Why does my AGM battery read good but still die?

A healthy resting voltage can hide a battery that collapses under load. It also can't reveal a parasitic draw flattening it overnight. Run a cranking test and check current draw.

One of those usually exposes the real problem.

How often should I test an AGM battery?

Twice a year is plenty for a daily driver, ideally before winter and summer. For stored vehicles, check resting voltage monthly. Any hard starting, dim lights, or a warning light is your cue to test right away.

Your Quick Decision Guide: What to Do at Each Voltage

Keep this handy for the next time your meter gives you a number. Run the reading straight down the list and act.

• 12.8V or higher, rested: healthy. Confirm with a cranking or load test if you're unsure.
• 12.4V to 12.7V: partial charge. Recharge fully, then retest resting voltage.
• Under 12.4V after a full charge: capacity is fading. Load test before you trust it.
• Cranking drops below 9.6V: weak or bad cell. Plan to replace.
• Under 13.5V with the engine running: charging fault. Check the alternator and belt.
• Over 14.8V running: overcharging. Have the voltage regulator looked at.
• Keeps dying overnight but tests fine: hunt down a parasitic draw.

Pair a rested voltage reading with one load check and you've got the full picture. That two-step habit catches a tired AGM battery long before it strands you on a cold morning.
