Battery or Alternator? Test It With a Multimeter

Your car won't start, and you're stuck guessing which part failed. Learning how to tell if it's the battery or alternator with a multimeter takes the guesswork out of it. A cheap meter and five minutes give you a clear answer.

No tow truck, no parts-store gamble.

A healthy 12V battery reads about 12.6 volts at rest. A working alternator pushes 13.7 to 14.7 volts once the engine runs. Those two numbers, in line with standard charging-system testing, are basically the whole diagnosis.

Here's how to read them right.

Quick Answer

Set a multimeter to 20V DC. With the engine off, a healthy battery reads 12.6 volts or more. Start the engine and read the same terminals again.

A good alternator shows 13.7 to 14.7 volts. Low running voltage means the alternator, low resting voltage means the battery.

How the Battery and Alternator Split the Job

These two parts do different work, and that's exactly why the test works. The battery has one big job: cranking the engine to life. It stores power and dumps a huge burst of it to the starter motor.

The alternator takes over the second the engine fires. It's a small generator spun by the serpentine belt. Once running, it powers everything electrical and recharges the battery on the fly.

So the split is simple:

• Battery = starting power and storage.
• Alternator = charging and running power.

If your car struggles to crank but runs fine after a jump, that points at the battery. If it starts okay but dies or dims while driving, that points at the alternator. A multimeter just confirms which story the voltage tells.

One more piece matters here. The voltage regulator, built into most modern alternators, keeps output in a safe band. When it fails, you get overcharging or undercharging, and the numbers you read will show it.

What You Need: Setting Your Multimeter to DC Volts

You need almost nothing for this, which is the best part. A basic digital multimeter (DMM) and a few minutes will do. Skip fancy gear.

Here's your short kit list:

Set the dial to DC volts, shown as V with a straight line and dashes (V⎓). Pick the 20V range so a 12V reading lands mid-scale. If your meter is auto-ranging, it does this for you.

Getting the dial on the right 20V setting is the one step people fumble most.

Watch out for the AC setting (V~). Testing a battery on AC volts gives a junk reading and confuses everything. If your number looks wild, check the dial first.

Not sure which mode to pick? Here's a rundown of which mode fits a 12V battery.

Red probe goes to the positive post. Black probe goes to the negative post. Reverse them and you'll just see a minus sign, no harm done, but fix it so the numbers read clean.

Reading the Signs: Symptoms That Point to Battery vs Alternator

Before you touch a probe, the symptoms already hint at the culprit. They won't confirm it, but they tell you what to expect from the meter.

Won't Crank, Clicks, or Slow Start

A slow, lazy crank usually means the battery. So does a single click or a dashboard that lights up but the engine won't turn over. These are classic signs of a battery that can't deliver its starting burst.

Cold mornings make this worse. Batteries lose cranking power as temperatures drop, so a marginal battery often dies with the first real cold snap. If yours acts up in winter, read up on how the cold saps voltage before you condemn the part.

Dies While Driving or Dims at Idle

If the engine starts fine but stalls a mile down the road, look at the alternator. Same goes for headlights that dim at idle and brighten when you rev. A battery warning light on the dash while driving is another alternator tell.

Here's the trap that fools people. A bad alternator drains the battery, so the car acts like it has a dead battery. Jump it, drive a bit, and it dies again.

That repeat failure is your clue the alternator, not the battery, is the real problem.

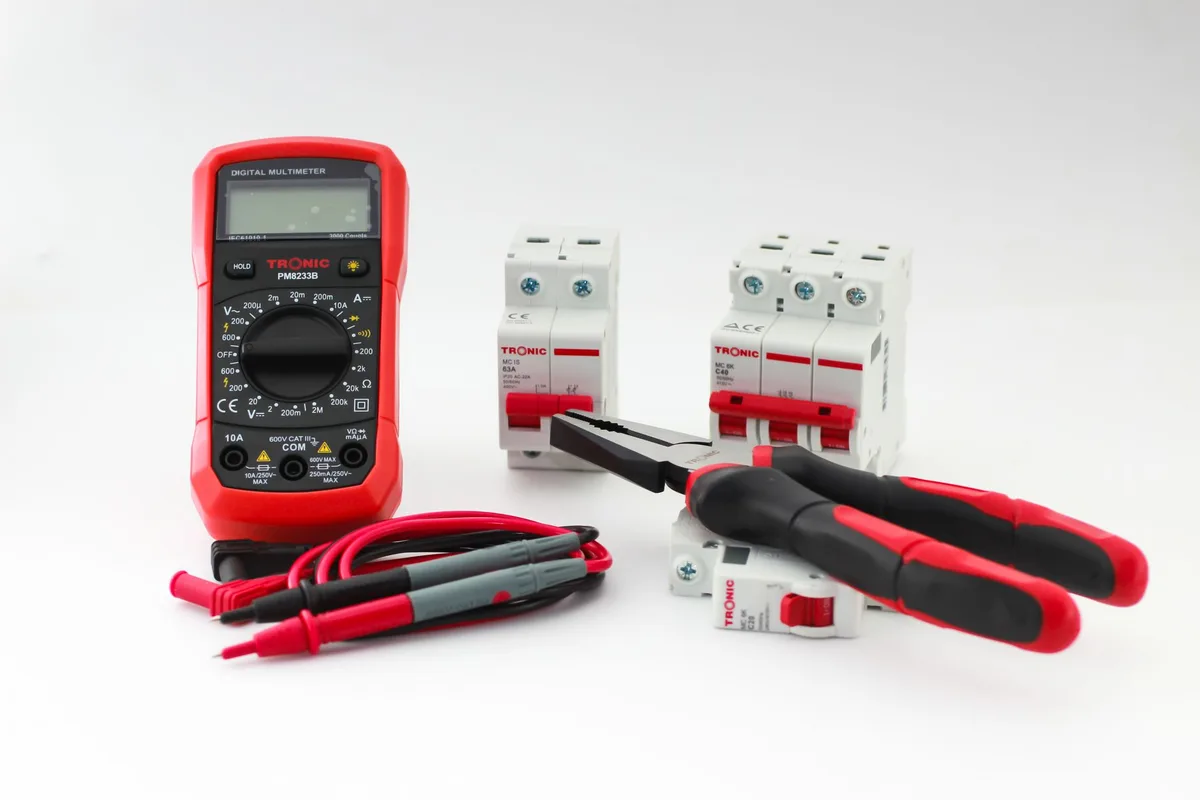

Step 1: The Engine-Off Resting Voltage Test

This first test checks the battery on its own, with nothing running. Turn the engine off and shut every accessory. Open the hood and find both battery terminals.

Touch the red probe to the positive post and the black probe to the negative post. Read the number and hold it for a second to let it settle. This is your resting voltage, the battery's true state of charge.

The full walkthrough for checking a battery covers probe placement in more detail.

Here's what the resting number tells you:

One catch trips up a lot of folks: surface charge. If you just drove the car, the battery can read falsely high for a while. For a true reading, let it sit 8 to 12 hours, or switch the headlights on for two minutes and then off to bleed the surface charge.

If the battery reads 12.6V or higher and still won't crank, the battery may be fine and the fault lies elsewhere. If it reads 12.2V or lower after a full charge, the battery is weak. Either way, don't stop here.

The next test with the engine running is what separates a battery problem from an alternator problem.

Step 2: The Engine-Running Charging Voltage Test

Now start the engine and leave the probes on the same terminals. This test checks the alternator while it's actually working. Watch the number climb the moment the engine catches.

A healthy alternator brings the reading up to 13.7 to 14.7 volts at idle. That jump proves the alternator is charging the battery. If the voltage barely moves or stays near 12.4V, the alternator isn't doing its job.

Here's the if/then logic:

• If running voltage sits between 13.7V and 14.7V, the charging system is fine.
• If it stays under 13.5V, you're looking at an undercharging alternator or a slipping belt.
• If it climbs past 15V, the voltage regulator is likely bad, and that much output runs too hot for the battery.

Rev the engine to about 2,000 RPM and check again. Voltage should hold steady in that healthy band, not sag. If revving barely lifts the number, the alternator can't keep up with demand.

A deeper look at the normal output window helps you judge borderline readings.

Step 3: The Load Test With Headlights, AC, and Defrost

This test is where a weak alternator finally shows itself. With the engine running, keep the meter on the terminals. Then pile on the electrical load.

Turn on the headlights, the AC on high, the rear defroster, and the blower fan. Watch the voltage as each load kicks in. A strong alternator holds above 13V even with everything running.

If the number drops below 13V and keeps sliding toward 12.4V, the alternator can't handle the demand. That's a failing alternator, even if it passed the idle test. Real-world driving loads it exactly like this.

Here's a quick read on what you'll see:

A steady voltage under load is the sign of a healthy charging system. A sagging one tells you the alternator is on its way out. If you want the full sequence, the complete alternator check lays each step out.

Step 4: The AC Ripple Check for a Bad Alternator Diode

This last test catches a sneaky failure the others miss. An alternator makes AC power, then converts it to DC using diodes. When a diode fails, dirty AC voltage leaks through, called ripple.

Switch your multimeter to AC volts (V~) while the engine runs. Keep the probes on the battery terminals. You're now reading only the AC leaking past the diodes.

A healthy alternator shows almost no AC ripple. Here's the threshold:

• Under 0.05V (50mV) of AC: diodes are good.
• Above 0.1V (100mV) of AC: a diode has likely failed.

High ripple explains weird symptoms like flickering lights or a battery that won't stay charged, even when DC voltage looks normal. It's the reading that solves confusing cases. Our research shows a full diode ripple test is worth doing whenever the numbers don't add up.

12V Battery Voltage Chart and Healthy Alternator Numbers

Keep these numbers handy, because they turn a fuzzy guess into a clear call. One chart covers both the battery at rest and the alternator at work. Save it on your phone for the next no-start.

One number worth its own mention is cranking voltage. While the engine turns over, the battery should stay above roughly 9.6V. If it dips well below that during a start, the battery has a weak cell.

The normal cranking range is a fast way to confirm a tired battery.

These figures reflect standard 12V automotive charging practice as of 2026. For the science behind lead-acid charging and safe handling, the U.S. Department of Energy's vehicle technology resources are a solid primary reference.

Reading Your Results: The Battery-or-Alternator Decision Guide

Put the four tests together and the answer falls out fast. Each result points at one part. Here's the decision flow in plain terms.

If the battery reads below 12.4V at rest but jumps to 13.7 to 14.7V once running, the battery is weak and the alternator is fine. Charge or replace the battery.

If the battery reads 12.6V at rest but running voltage stays under 13.5V, the battery is fine and the alternator is failing. The alternator can't recharge what you use.

If running voltage looks okay but AC ripple is high, a diode has failed inside the alternator. Replace the alternator even though DC voltage seems normal.

Quick summary of the branches:

• Low resting, good charging = battery problem.
• Good resting, low charging = alternator problem.
• Good charging, high ripple = alternator diode problem.
• Dies repeatedly after a jump = alternator draining the battery.

One caution before you buy parts. A dirty terminal or loose ground can fake either failure, so rule those out first. The next section covers the culprits that mimic a bad battery or alternator.

Terminals, Belts, and Parasitic Draw: Culprits That Fake a Bad Part

Before you spend money, rule out the impostors. A few cheap faults mimic a dead battery or a failing alternator. Catch these and you might fix the car for free.

Corroded or loose terminals top the list. That white or green crust blocks current and drags your voltage readings down. Clean the posts, tighten the clamps, and retest before blaming anything.

A glazed or slipping serpentine belt is another one. If the belt can't spin the alternator properly, charging voltage sags even with a good alternator. Check the belt for cracks and proper tension.

Then there's parasitic draw, a circuit that keeps pulling power after the car is off. A stuck relay or bad module can flatten a healthy battery overnight. A quick parasitic draw check finds it, and a voltage drop test pinpoints bad cables or a weak ground.

Test Mistakes That Give You the Wrong Answer

Most bad diagnoses come from small testing errors, not bad parts. Avoid these and your numbers will actually mean something.

• Testing right after a drive. Surface charge inflates the reading. Let the battery rest first.
• Leaving the meter on AC volts. You'll get a junk number. Confirm the dial reads DC.
• Dirty probe contact. Grime on the posts drops the reading. Touch clean metal.
• Skipping the load test. An alternator can pass at idle and still fail under demand.
• Ignoring the ground. A bad ground connection reads like a weak battery.

One more: testing a stone-cold battery on a freezing morning and assuming it's dead. Cold cuts cranking power temporarily. Warm it up or charge it before you write it off.

Working Safely Around Acid, Hydrogen, and a Running Engine

Battery testing is low-risk, but two hazards deserve respect. A lead-acid battery holds sulfuric acid and vents hydrogen gas, which is flammable. Keep sparks and flames away from the battery.

Wear safety glasses and gloves. If acid touches skin or eyes, flush with water right away. The battery handling guidance from OSHA spells out the risks worth knowing.

The second hazard is the running engine. During the charging and load tests, keep probes, hands, and loose clothing clear of the spinning belt and fan. Set the parking brake and put the car in Park or Neutral first.

Take off rings and watches before you start. Metal jewelry across a terminal can cause a dead short and a nasty burn. When you're done, recycle any dead battery as hazardous waste, never the trash.

Multimeter vs Load Tester vs Free Parts-Store Test

A multimeter is the fastest home tool, but it's not the only option. Each method suits a different situation. Here's how they stack up.

A multimeter is best for anyone who wants a five-minute answer at home. A dedicated load tester is better if you suspect a weak battery but the voltage looks fine. It stresses the battery like the starter does.

The free bench test at an auto-parts counter suits folks with no tools at all. If you're truly stuck, there are ways to check a battery without a meter too, though they're rougher. For capacity questions, a proper load test beats a plain voltage read.

When to Stop Testing and Get a Pro Involved

Some results mean it's time to hand off the job. If your voltage climbs above 15V, stop driving and get it checked. Overcharging cooks the battery and can damage electronics.

Call a pro if the car keeps dying after you've cleaned the terminals and confirmed a charged battery. That points to a deeper charging fault or a wiring problem. A repeat no-start with good numbers often traces back to the starter circuit.

Also get help if you smell rotten eggs near the battery. That sulfur smell means the battery is venting and possibly failing internally. Don't keep testing a battery that's gassing hard.

Trust the numbers, but know their limit. A multimeter tells you what's happening, not always why. When the readings don't match the symptoms, a shop with a full charging-system analyzer takes it from there.

Frequently Asked Questions

Can a car run with a bad battery but good alternator?

Yes, briefly. Once started, the alternator can keep the engine running. But a dead battery may not crank it in the first place.

Fix the battery so you're not stuck after the next shutdown.

What voltage is too low for an alternator?

Anything under 13.5 volts at idle is too low. A healthy alternator holds 13.7 to 14.7 volts. Below 13.5V, it isn't charging fast enough, and the battery slowly drains while you drive.

Why does my battery test good but the car won't start?

A battery can read 12.6V at rest yet fail under crank load. Surface charge hides a weak cell. Run a load test or check cranking voltage.

It should stay above 9.6V during start.

How long should I let the battery rest before testing?

Let it sit 8 to 12 hours for a true resting voltage. If you can't wait, turn the headlights on for two minutes, then off. That bleeds the surface charge and gives a more honest reading.
