How to Test an Alternator With a Multimeter

A dead battery in the driveway sends most people straight to the parts counter. But before you spend a dime, learning how to test an alternator with a multimeter can tell you whether the battery died on its own or the charging system quit feeding it. A basic digital multimeter and ten minutes are all you need.

The readings do the talking.

The numbers here aren't guesswork. A healthy charging system holds roughly 13.8 to 14.4 volts while the engine runs, and a fully charged battery rests near 12.6 volts. As of 2026, that range still matches what most vehicle manufacturers print in their service specs.

Get those two readings and you're already halfway to a diagnosis.

Quick Answer

Set your multimeter to 20 volts DC. Touch the red probe to the positive battery terminal and black to negative. Engine off, a good battery reads about 12.6 volts.

Start the engine. A healthy alternator pushes the reading to 13.8 to 14.4 volts. Anything under 13 volts means the alternator likely isn't charging.

Why a Dead Battery Doesn't Always Mean a Dead Alternator

A car that won't start feels like a battery problem. Often it is. But a battery only stores power.

The alternator is what refills it while you drive.

So when the lights go dim or the engine cranks slow, you've got two suspects, not one. A weak battery can leave a perfectly good alternator looking guilty. A failing alternator can drain a brand-new battery in a single trip.

Here's the logic in plain terms:

• If the battery reads full at rest but drops fast under load, the battery may be worn out.
• If the battery charges overnight but dies again after driving, the alternator is the likely culprit.
• If the dashboard battery light glows while driving, that's a charging-system warning, not a low-battery light.

Testing sorts this out in minutes. Skip it, and you might replace a good battery only to be stranded again next week. If you want the battery side covered too, our walkthrough on reading resting battery voltage pairs well with this guide.

What You Need Before You Start: Multimeter, Settings, and Safety Prep

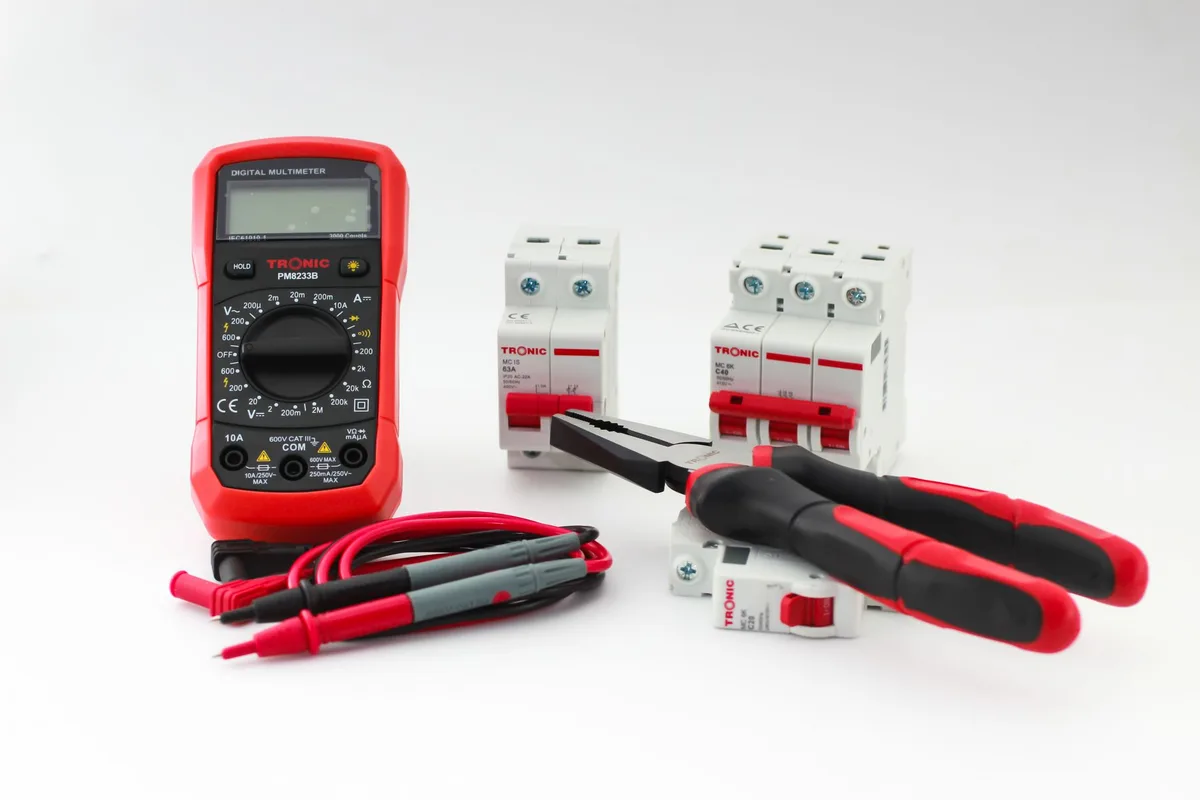

You don't need fancy gear. A cheap digital multimeter (DMM) does the whole job. What matters is setting it correctly and staying clear of moving parts.

Here's your short checklist:

Set the dial to DC voltage, marked V with a straight line (V⎓). Choose the 20V range if your meter isn't auto-ranging. That range covers everything a 12-volt system will throw at you.

Reputable meter makers like Fluke label these settings clearly on the dial.

A few safety rules you can't skip:

• Keep fingers, sleeves, and the probes away from the belt and fan.
• Never let the two probes touch each other on live terminals.
• Don't disconnect the battery while the engine runs on a modern car. That voltage spike can fry the electronics.

The Quick Voltage Numbers That Tell You Everything

Most of this test comes down to a handful of numbers. Memorize these and you can read the results on the spot.

The pattern is simple. The number should jump up once the engine starts. If it barely moves, the alternator isn't doing its job.

There's one more reading people forget: AC ripple. Your alternator makes AC power and converts it to DC. If the converter diodes fail, stray AC leaks through.

We'll test that later, but keep this number handy: anything above 0.5 volts AC points to bad diodes. For a deeper look at what the battery alone should show, this guide on checking a battery's health breaks down the resting numbers.

How the Charging System Actually Works (Alternator, Battery, Regulator)

Three parts run the show: the alternator, the battery, and the voltage regulator. Understanding how they hand off power makes the test results click.

The alternator spins off the engine belt. As it turns, it generates electricity to run your lights, radio, and fuel pump while topping up the battery. The battery's real job is just starting the car and smoothing things out.

The voltage regulator is the referee. It keeps output in that safe 13.8 to 14.4 range. Too low and the battery drains.

Too high and it cooks. On most cars built in the last 25 years, the regulator lives inside the alternator.

Inside the alternator, diodes act as one-way gates. They turn the raw AC current into the DC your car needs. When a diode fails, you get that AC ripple leak and often a whining noise or flickering lights.

That's why we test both DC volts and AC volts. One checks output, the other checks quality.

Step-by-Step: Testing Your Alternator With a Multimeter

Work through these steps in order. Each reading points you toward the next.

Step 1: The Resting Battery Test (Engine Off)

Turn everything off and open the hood. Set the meter to 20V DC. Touch red to the positive terminal, black to negative.

A healthy battery reads 12.6 volts or higher. If it's below 12.2, charge it before going further. A drained battery throws off the running test.

Step 2: The Running Voltage Test (Engine Idling)

Start the engine and leave the probes on the terminals. Watch the number climb.

You want 13.8 to 14.4 volts at idle. If it stays near 12.6 or drops lower, the alternator isn't charging. If it shoots past 15, the regulator is failing.

Step 3: The Load Test (Headlights, A/C, Blower On)

Now stress the system. Turn on the headlights, air conditioning, rear defroster, and blower fan. Keep watching the meter.

A strong alternator holds voltage above 13 volts under this load. Rev the engine to about 2,000 RPM and it should stay steady. A big voltage drop means the alternator can't keep up with demand.

Step 4: The AC Ripple Test for Bad Diodes

Switch the meter to AC voltage (V∼) with the engine still running. Put the probes back on the battery terminals.

You want to see less than 0.05 volts AC, and definitely under 0.5. A higher AC reading means the diodes are leaking. That alternator needs replacing even if the DC numbers looked fine.

Step 5: The Voltage Drop Test for Bad Grounds

Sometimes the alternator is fine but a bad connection starves it. With the engine running, touch the red probe to the alternator's positive output post and black to the positive battery terminal.

A good connection shows under 0.2 volts of drop. A higher number means corrosion or a loose cable is stealing power. Clean the terminals and retest before condemning the alternator.

Reading Your Results: What Each Voltage Range Is Telling You

The readings only help if you know what each one is pointing at. Here's how to turn numbers into a verdict.

If the engine-off reading sits at 12.6 or higher but the running reading barely moves, the alternator isn't charging. If both readings are low, start by charging the battery, then retest. A weak battery can mask the real problem.

Use this quick branch logic:

• Rest 12.6V, running 14.0V: charging system is healthy.
• Rest 12.6V, running 12.5V: alternator not charging, check belt and connections.
• Rest 12.6V, running 15.5V: regulator overcharging, replace the alternator.
• Rest 11.8V, running 14.2V: alternator fine, battery is worn out.
• DC looks good but AC ripple over 0.5V: diodes failing, replace the alternator.

That last case trips up a lot of people. The DC numbers look textbook, yet the car still acts up. Always run the AC test before you call it healthy.

Alternator or Battery? How to Tell Them Apart

The fastest way to separate the two is the running voltage test. If voltage climbs when the engine starts, the alternator is charging and the battery is the weak link. If it doesn't climb, the alternator is the problem.

Try this simple sequence:

• Charge the battery fully, then check it rests at 12.6V.
• Start the car and confirm it jumps to 13.8 to 14.4V.
• Drive a bit, shut off, and recheck the resting voltage.

If the battery holds a charge overnight but dies after a drive, the alternator isn't refilling it. If it won't hold a charge even after a full charge, the battery is done.

A worn battery often shows its age by dropping below 12 volts overnight. A common failure point is a battery that reads fine at rest but collapses under the starter's load. Our breakdown on spotting a failing battery covers that load behavior in detail.

Common Testing Mistakes That Give You False Readings

Most bad diagnoses come from small errors, not faulty parts. Get these right and your numbers mean something.

• Testing on a surface charge. A freshly driven battery holds a false-high reading. Let it sit an hour before the resting test.
• Wrong meter setting. Reading DC on the AC scale (or the wrong range) gives garbage. Confirm 20V DC first.
• Dirty terminals. Corrosion adds resistance and drops your numbers. Clean the posts and clamps before testing.
• Skipping the load test. An alternator can pass at idle but fail under real demand. Always turn on the accessories.
• Loose probe contact. Press firmly onto bare metal, not painted or greasy surfaces.

One more trap: assuming a normal voltage means the alternator is perfect. A car can read 14 volts and still have a failing diode leaking AC. That's exactly why the ripple test earns its place.

When in doubt, a quick recheck of the resting terminal voltage rules out a tired battery skewing everything.

Multimeter vs Load Tester vs Free Parts-Store Bench Test

A multimeter is the cheapest and most flexible tool, but it isn't the only option. Here's how the three common methods stack up.

The multimeter wins for quick, in-car diagnosis. It's ideal for the driveway mechanic who wants to know what's wrong before buying anything.

A load tester suits someone who checks charging systems often. It puts a real amperage load on the system, which catches marginal parts a voltage reading might miss.

The free bench test is worth using as a tiebreaker. If your multimeter readings are borderline, most auto-parts stores will test a removed alternator on their bench at no charge. Use it to confirm before you spend on a replacement.

Safety Rules You Can't Skip Around a Running Engine

An engine bay has spinning belts, hot metal, and enough current to hurt you. A few habits keep the test safe.

• Keep loose clothing, jewelry, and long hair away from the belt and cooling fan.
• Wear safety glasses. Batteries vent hydrogen gas and can leak acid.
• Never let your two probes touch each other or bridge both terminals at once.
• Route the probe leads clear of moving parts before you start the engine.

The biggest rule bears repeating: don't disconnect the battery while a modern engine runs. That old "pull the terminal" trick can send a voltage spike through the electronics and damage the ECU. It was fine on 1970s cars, not today's.

Work in a ventilated space, and keep a rag handy for greasy terminals. If you smell rotten eggs near the battery, stop. That sulfur smell can mean an overcharging alternator is boiling the battery, and that's a fire and acid risk worth taking seriously.

Pro Tips for More Accurate Charging System Diagnosis

A few small habits make your readings sharper and your diagnosis more reliable.

• Test with the battery rested, not right after a long drive. That removes the surface charge.
• Check the belt first. A glazed or loose serpentine belt drops output before any part fails.
• Compare idle to 2,000 RPM. Voltage should hold steady, not sag when you rev.
• Watch the meter while wiggling the alternator wiring. A jumpy reading points to a loose connection.

One overlooked trick: test with the engine warm and again after a short drive. Some alternators charge fine cold but fade once heat builds. If your numbers slip after twenty minutes of running, heat is likely stressing a marginal part.

When to Stop Testing and See a Mechanic

Call in a pro once your readings point to a failing part but the fix isn't simple. A multimeter tells you what's wrong, not always why.

Head to a shop if you see any of these:

• Voltage over 15 volts, which points to a bad regulator inside the alternator.
• Normal DC volts but high AC ripple, meaning failed diodes.
• Repeated dead batteries even after the alternator tests fine.
• Burning smells, smoke, or a hot alternator housing.

Replacing an alternator often means removing the belt and wrestling with tight brackets. If you're not comfortable with that, a mechanic can swap it safely. The same goes for tracing a parasitic drain, which needs more than a basic voltage check.

FAQs: Testing an Alternator With a Multimeter

Can I test an alternator without starting the car?

Not fully. The engine-off reading only tells you the battery's charge, not whether the alternator works. You need the engine running to see if voltage climbs into the 13.8 to 14.4 range.

The running test is what actually checks the alternator.

What voltage means my alternator is bad?

A running reading below 13 volts usually means the alternator isn't charging. A reading above 15 volts means it's overcharging from a failed regulator. Either result points to a bad alternator.

Also replace it if AC ripple tops 0.5 volts.

Should the multimeter be on AC or DC to test an alternator?

Use DC volts for the main output test, since your car runs on DC. Switch to AC volts only for the ripple test that checks the diodes. A healthy alternator shows almost no AC.

Anything over 0.5 volts AC means the diodes are failing.

Why does my battery keep dying if the alternator tests fine?

A parasitic drain is the usual culprit. Something stays powered after you shut off the car, like a stuck relay or a bad interior light switch. A multimeter set to measure current can find it.

A worn battery that won't hold a charge is the other common cause.

Your Quick Diagnosis Decision Guide

Here's the whole test boiled down to a fast decision path.

• Engine off reads 12.6V or higher: battery is charged, move on.
• Engine off reads under 12.2V: charge the battery, then retest.
• Engine running reads 13.8 to 14.4V: alternator is charging fine.
• Engine running reads under 13V: alternator isn't keeping up, check the belt and connections.
• Engine running reads over 15V: regulator failing, replace the alternator.
• DC looks good but AC ripple tops 0.5V: bad diodes, replace the alternator.

Run the tests in order and the numbers point you straight to the culprit. Charge the battery first, confirm the running voltage, then load it up and check the ripple. Ten minutes with a multimeter can save you from buying the wrong part or getting stranded again.
