Car Battery Voltage When Running: What’s Normal?

If you've ever clipped a meter to your battery and wondered what the number means, you're in the right place. What should car battery voltage be when running comes down to one healthy window: roughly 13.7 to 14.7 volts. That reading tells you the alternator is doing its job and topping the battery back up.

Anything well outside that band is a clue that something needs attention.

Here's the catch. A single number never tells the whole story, because the reading shifts with engine speed, temperature, and electrical load. As of 2026, most 12V systems still target around 14.2V at a warm idle, per common manufacturer charging specs.

We'll walk through what each reading means and how to test it yourself.

Quick Answer

A healthy car battery reads 13.7 to 14.7 volts while the engine runs. This shows the alternator is charging the battery properly. At rest with the engine off, a full battery reads about 12.6 volts.

Readings above 15 volts signal overcharging. Readings below 13 volts while running point to a weak or failing alternator.

What Those Numbers Actually Mean: Resting vs Cranking vs Running Voltage

Three different voltage readings matter, and people mix them up all the time. Each one measures the battery in a different state. Get them straight and diagnosis gets easy.

• Resting voltage: Engine off, everything off, ideally after sitting a few hours. A full battery sits at about 12.6V. This is your baseline.
• Cranking voltage: The brief dip when you turn the key and the starter draws heavy current. It should stay above roughly 9.6V.
• Running voltage: Engine on, alternator charging. This is the 13.7 to 14.7V window that answers the main question.

The jump from resting to running voltage is the whole point. When the engine fires, the alternator kicks in and pushes voltage past 13V to recharge the battery and run your electronics. If that jump doesn't happen, the alternator isn't charging.

Resting voltage measures stored charge. Running voltage measures charging output. They're two separate health checks.

A battery can show a fine 12.6V at rest and still fail under load, which is a trap we'll cover later. If you want the resting-state basics first, this walkthrough on checking a battery at rest covers the baseline test.

Why Running Voltage Changes: The Conditions That Move the Needle

Your running voltage isn't one fixed number, and that's normal. It breathes with the car's demands. Knowing what moves it keeps you from chasing a fault that isn't there.

Idle vs Revving to 2,000 RPM

At a cold idle, voltage may sit slightly lower while the system warms up. Rev the engine to about 2,000 RPM and you'll usually see it climb and steady inside the 13.7 to 14.7V band. That's the alternator spinning faster and producing more output.

If your reading is low at idle but jumps nicely when you rev, the charging system is likely fine. If revving does nothing, that points toward the alternator or its wiring.

Electrical Load: AC, Headlights, and Rear Defrost

Turn on the big power draws and watch the number sag. That's expected. The AC blower, headlights, heated seats, and rear defrost all pull current the alternator has to cover.

A healthy system holds voltage above about 13V even with a heavy load. If it nosedives toward 12V with the accessories on, the alternator can't keep up. A quick voltage drop check on the cables can tell you whether it's the alternator itself or a lazy connection stealing the difference.

Cold Engine, Warm Engine, and Temperature

Temperature nudges the target voltage. Cold batteries need a slightly higher charging voltage, and many modern systems compensate automatically. On a freezing morning you might see voltage run a touch higher for the first few minutes.

That's the voltage regulator doing its job. It adjusts output based on temperature and battery state to protect the battery.

Smart Charging Alternators and Why Your Reading May Swing

Newer cars throw people off here. Fuel-saving smart charging systems deliberately vary voltage, sometimes dropping to 12.7V under light load and spiking to 14.8V during coasting. This is the ECU managing the alternator to save fuel.

So if your modern car's voltage bounces around while driving, don't panic. On a start-stop or smart-charging vehicle, a swinging reading is designed behavior, not a fault.

Reading Your Voltage Chart: State of Charge at a Glance

Resting voltage maps directly to how charged your battery is. This chart is for the engine off, not running. Use it to judge stored charge before you ever start the car.

A few notes make this chart more useful:

• Let the car sit before testing. A recent drive leaves a "surface charge" that reads falsely high.
• These figures are for a standard 12V flooded battery. AGM batteries read slightly higher, so an AGM-specific test gives cleaner numbers for those.
• Voltage shows charge level, not health. A battery can hold 12.6V and still fail a load test.

If the resting number looks fine but the car cranks slowly, the problem is capacity, not charge. That's your cue to run a proper load test rather than trusting voltage alone.

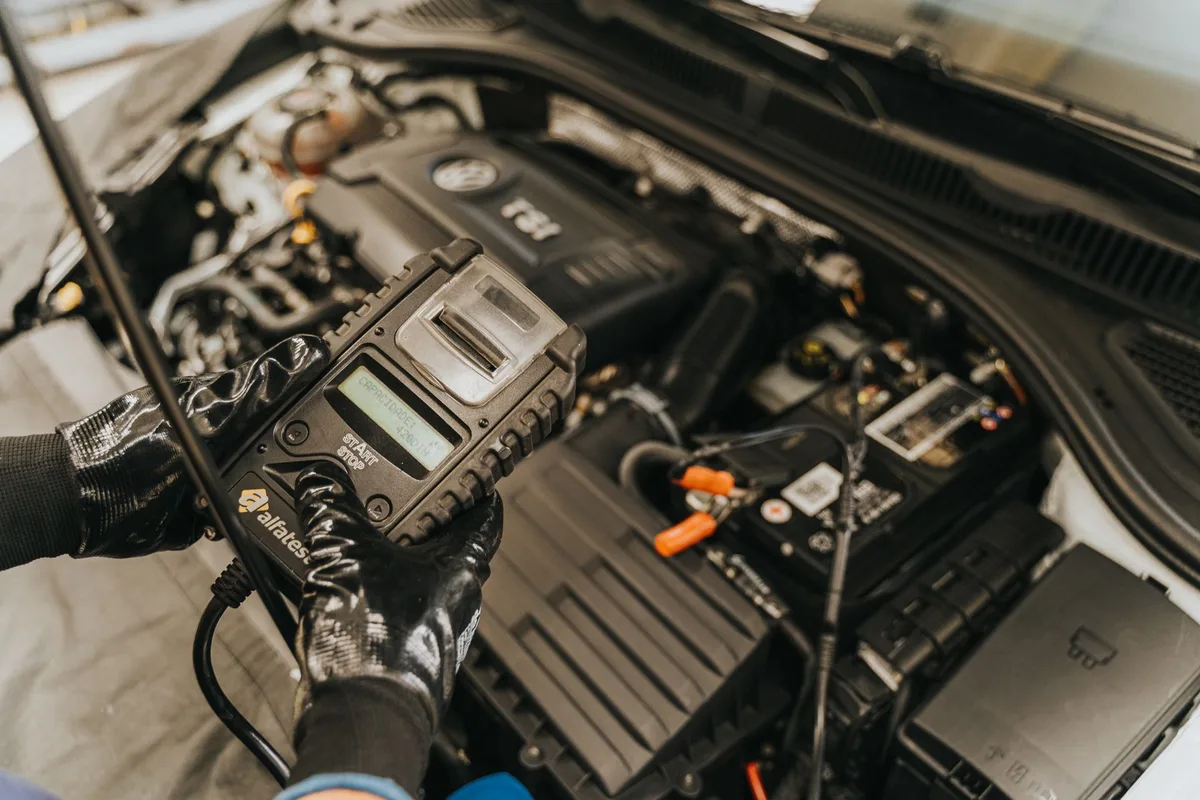

How to Test Your Battery Voltage With a Multimeter

Testing takes about two minutes and a cheap digital multimeter. A basic meter runs roughly $15 to $40, which is nothing next to a needless battery or alternator swap. Here's the clean process.

1. Set the meter to DC volts. Choose the 20V DC range. If you're unsure which symbol that is, this quick note on dialing in 20V DC clears it up.
2. Test resting voltage first. Engine off. Touch the red probe to the positive terminal and black to negative. Look for about 12.6V.
3. Start the engine and read again. Keep probes on the terminals. You want 13.7 to 14.7V at idle.
4. Rev to about 2,000 RPM. Voltage should hold steady inside that band, not spike past 15V or fall below 13V.
5. Switch on the loads. Headlights, AC, and rear defrost together. A healthy system stays above roughly 13V.

A couple of safety habits matter here. Keep the probes and your fingers clear of the belt and cooling fan. Mind your polarity: red to positive, black to negative, every time.

For the manufacturer's own guidance on setting up and using a meter safely, the Fluke multimeter resource is a solid primary reference. If you'd rather see the full terminal-by-terminal method with photos, our step-by-step battery test walks the whole thing through.

What Your Reading Is Telling You: The Decision Branches

Now for the payoff. Take your running voltage and match it to one of four branches below. Each points to a different fix.

Above 15V: Overcharging and a Bad Regulator

If you're reading over 15V while running, the voltage regulator has lost control. It's forcing too much current into the battery. Left alone, overcharging boils off electrolyte and cooks sensitive electronics.

The usual culprit is a failed regulator inside the alternator. On some cars the ECU controls charging, so a wiring or sensor fault can trigger it too. Either way, don't keep driving on it.

13.7 to 14.7V: A Healthy Charging System

Land in this window and your charging system is working. The alternator is feeding the car and topping up the battery. Voltage should stay steady when you rev and only dip modestly under load.

This is the target. If you got here after a jump-start, let the engine run and confirm the number holds. A steady reading means the battery is recharging.

13.0 to 13.6V: Undercharging or a Weak Alternator

A reading in this range means the alternator is charging, but weakly. It may keep up on a short trip and fall behind overnight. Worn brushes, a slipping serpentine belt, or a tired alternator all cause this slow starve.

Check the belt tension first, since it's the cheap fix. If the belt is fine, a full alternator output check will confirm whether the unit itself is fading.

12.6V or Dropping: Alternator Not Charging At All

If running voltage sits at the resting 12.6V or slides lower, the alternator isn't charging. The car is running purely on battery reserve. Expect the dash lights to dim and the engine to stall within minutes.

Common causes are a snapped belt, a blown fusible link, or a dead alternator. A corroded main cable can also block the charge. Testing the main cables end to end rules out a wiring fault before you condemn the alternator.

Checking for AC Ripple and Failing Alternator Diodes

Voltage can look perfect and still hide a fault: AC ripple. An alternator makes AC power, then diodes convert it to the DC your car uses. When a diode fails, raw AC leaks into the system.

Here's the quick test. Switch your multimeter to AC volts with the engine running. Probe the battery terminals the same way.

You want to see under 50 millivolts, or 0.05V.

Anything higher points to one or more bad diodes. You'll often notice dimming lights, a whining noise, or odd electronic gremlins alongside it. Confirm it with a proper diode test on the alternator before replacing parts.

Ripple is the fault most DIYers miss because DC voltage reads normal. If your charging numbers look fine but electronics act strange, check AC ripple next.

The Good Voltage, Bad Battery Trap Most People Miss

A healthy voltage reading does not mean a healthy battery. This trips up almost everyone. Voltage shows the charge sitting on the plates, not how much current the battery can actually deliver.

An old battery can read a proud 12.6V at rest and still collapse the instant the starter pulls current. The internal resistance has climbed. The capacity is gone, even though the voltage looks fine.

That's why voltage alone can't clear a battery. You need a load test or a cranking-amps check to measure real capacity.

• A voltmeter measures potential, not power delivery.
• Cold cranking amps (CCA) and reserve capacity measure real strength.
• A battery that sags below 9.6V while cranking is failing, whatever it reads at rest.

If your resting voltage is solid but the car cranks slowly, run a battery load test. It's the only way to catch a battery that's charged but weak.

Common Mistakes That Give You a False Reading

Bad readings usually come from testing mistakes, not real faults. Rule these out before you spend a dime on parts. The most common one is dirty connections.

Corroded or loose terminals throw off every measurement. That white or green fuzz on the posts adds resistance and drops voltage. Clean the terminals and retighten before you trust any number.

Here are the errors that fool people most:

• Surface charge. Testing right after a drive reads high. Let the car sit, or turn on the headlights for 30 seconds to bleed it off first.
• Poor probe contact. Touching the clamp instead of the bare post gives a low reading. Get metal on metal.
• Wrong meter setting. DC volts for charge, AC volts for ripple. Mixing them up gives nonsense.
• Ignoring the ground. A bad ground strap mimics a weak alternator. A quick ground connection check rules it out.
• A dead battery draining overnight. That's often a hidden drain, not a charging fault. Trace it with a parasitic draw test.

Fix the simple stuff first. Clean posts, tight clamps, and a good ground solve more "charging problems" than any new alternator does.

Safety Steps Before You Touch the Battery

Car batteries store real energy and vent hydrogen gas, so a few habits keep you safe. Take thirty seconds to set up right. It's cheap insurance against a burn or a spark.

• No sparks or flames near the battery. Hydrogen is flammable. Don't smoke or strike anything metal across the terminals.
• Wear eye protection and gloves. Battery acid burns skin and eyes on contact.
• Mind the moving parts. When testing with the engine on, keep probes, sleeves, and jewelry clear of the belt and fan.
• Watch your polarity. Red probe to positive, black to negative. Reversing them can damage the meter or the car.
• Disconnect negative first. If you remove the battery, pull the negative terminal before the positive to avoid a short.

One more habit worth keeping. Recycle old lead-acid batteries at a proper drop-off, since they're regulated and never belong in the trash. Most parts stores take them back at no charge.

When to Test Yourself and When to See a Mechanic

A voltage check is safe DIY work for almost anyone. If you can set a meter to DC volts and touch two probes to two posts, you can handle it. The reading points you toward the fault before you spend on repairs.

Bring in a pro when the diagnosis crosses into deeper work. That includes replacing an alternator on a tightly packed engine bay, chasing an ECU-controlled charging fault, or tracing a hidden electrical drain you can't isolate.

• Do it yourself: voltage checks, cleaning terminals, checking belt tension, load-testing the battery.
• See a mechanic: internal alternator repair, regulator replacement on integrated units, wiring faults inside a harness, repeat failures after a new part.

If your numbers keep drifting after you've cleaned connections and swapped the obvious parts, stop guessing. A shop with a proper charging-system analyzer will pin it down faster than trial and error.

Frequently Asked Questions

Is 14.8 volts too high when running?

It's borderline. A brief spike to 14.8V is normal on a cold start or a smart-charging car. If it holds steady above 15V, that's overcharging and points to a failed voltage regulator.

Sustained high voltage cooks the battery and risks your electronics, so get it checked.

Why does my voltage drop to 12 volts while driving?

A drop to 12V while running means the alternator has stopped charging. The car is running on battery reserve alone. Common causes are a broken serpentine belt, a dead alternator, or a corroded main cable.

Expect stalling soon, so pull over and diagnose before the battery drains flat.

Should the engine be idling or revving when I test?

Test both. Read at idle first, looking for 13.7 to 14.7V. Then rev to about 2,000 RPM and confirm the number holds steady in that band.

If voltage is low at idle but climbs when you rev, the charging system is likely fine.

Can a good voltage reading still mean a bad battery?

Yes, and it's the trap most people fall for. Voltage shows stored charge, not real capacity. An old battery can read 12.6V at rest and still collapse under the starter's load.

Only a load test or a cranking-amps check reveals true battery health.

What voltage is too low for a car battery?

At rest, below 12.4V means the battery needs charging, and 12.0V or lower is nearly flat. While running, anything under 13V signals the alternator isn't charging properly. Below 9.6V during cranking, the battery is failing and won't hold up much longer.

Your Quick Decision Guide for Any Voltage Reading

Here's the whole diagnosis on one card. Match your running reading to the row and act on it.

Two habits keep you out of trouble. Test resting voltage first for a baseline, then running voltage for charging output. Clean terminals and a tight ground fix more "charging faults" than new parts ever do.

And remember the golden rule of battery testing. Voltage tells you the charge, but only a load test tells you the health. Check both, and you'll catch a failing battery or alternator long before it strands you.
