Can a Multimeter Test a Bad Ground? Yes—Here’s How

A dead sensor. Flickering headlights. A car that cranks slow for no clear reason.

Behind a lot of these gremlins sits one quiet culprit, a bad ground. So can a multimeter test a bad ground? Yes, and it's usually the fastest way to catch one.

Here's the catch, though. A healthy ground should show almost no voltage drop, under about 0.1 volt on most connections. A multimeter reads that in seconds.

Get the method right and you'll stop throwing parts at the problem.

Quick Answer

Yes, a multimeter can test a bad ground. The most reliable method is a voltage drop test with the circuit powered on. Set the meter to DC volts.

A good ground reads under 0.1 to 0.2 volt. Higher than that means resistance is building up in the connection.

What "Bad Ground" Actually Means (and Why It Fools People)

A ground is the return path for electricity. Current flows from the battery, through the device, then back to the battery negative through the ground. If that return path is dirty, loose, or corroded, the whole circuit suffers.

A "bad ground" rarely means a fully broken wire. More often it's a high-resistance connection. Think corrosion under a bolt, paint trapped beneath a ground lug, or a strap rusted where it meets the chassis.

Here's why it fools people. A ground can pass a simple beep test while sitting still, then fail the moment real current runs through it. No load, no problem.

Add a load, and the weak spot heats up and chokes the flow.

That's the whole reason static tests miss bad grounds. You need the circuit working to see the fault.

The Symptoms That Point to a Ground Problem

Bad grounds throw weird, flickering symptoms that don't add up. If the fault seems electrical but random, ground is a strong suspect.

Watch for these signs:

• Dim or flickering headlights, especially at idle
• Dashboard lights that pulse when other accessories turn on
• Slow cranking even after you confirmed the battery is fine
• Parts that backfeed, like a turn signal making the tail lights glow
• Sensors throwing odd fault codes with no clear cause
• A radio or amp with a buzzing ground loop noise

Before you chase a ground, rule out the battery itself. If the car cranks slow, confirm the pack is healthy first. A quick check of your normal resting voltage tells you whether the battery or the ground is your real problem.

Sometimes the numbers look fine but the car still won't turn over. That mismatch, where the battery reads good but nothing happens, is a classic bad-ground fingerprint.

Three Ways to Test a Ground, and Which One Actually Works

You've got three tools in the multimeter for this job. They're not equal. Knowing when each one lies to you is half the battle.

Here's how they stack up:

Continuity Test (Fast, but Limited)

Continuity mode beeps when current can pass between the probes. It's great for a fast sanity check. Touch one probe to the ground point, one to battery negative, and listen.

The problem? It beeps even on a badly corroded connection. A little current gets through, the meter chirps, and you assume all is well.

It only catches a completely open ground, not a weak one.

Resistance/Ohms Test (Better, Still Not Enough)

Resistance mode gives you a number instead of a beep. A good ground should read near 0 ohms, usually under 0.5 ohm. Higher readings hint at corrosion.

But cheap meters struggle to measure tiny resistances accurately. Lead resistance alone can skew the result. It's more useful than continuity, yet it still tests the ground while it's sitting there doing nothing.

Voltage Drop Test (The One Pros Trust)

This is the method that actually works. You test the ground while current is flowing through it. Any voltage you measure across the connection is voltage the ground is wasting as resistance.

A clean ground drops almost nothing, under 0.1 to 0.2 volt. A bad one shows more. The bigger the drop, the worse the connection.

Meter makers like Fluke lean on voltage drop in their diagnostic guides for exactly this reason.

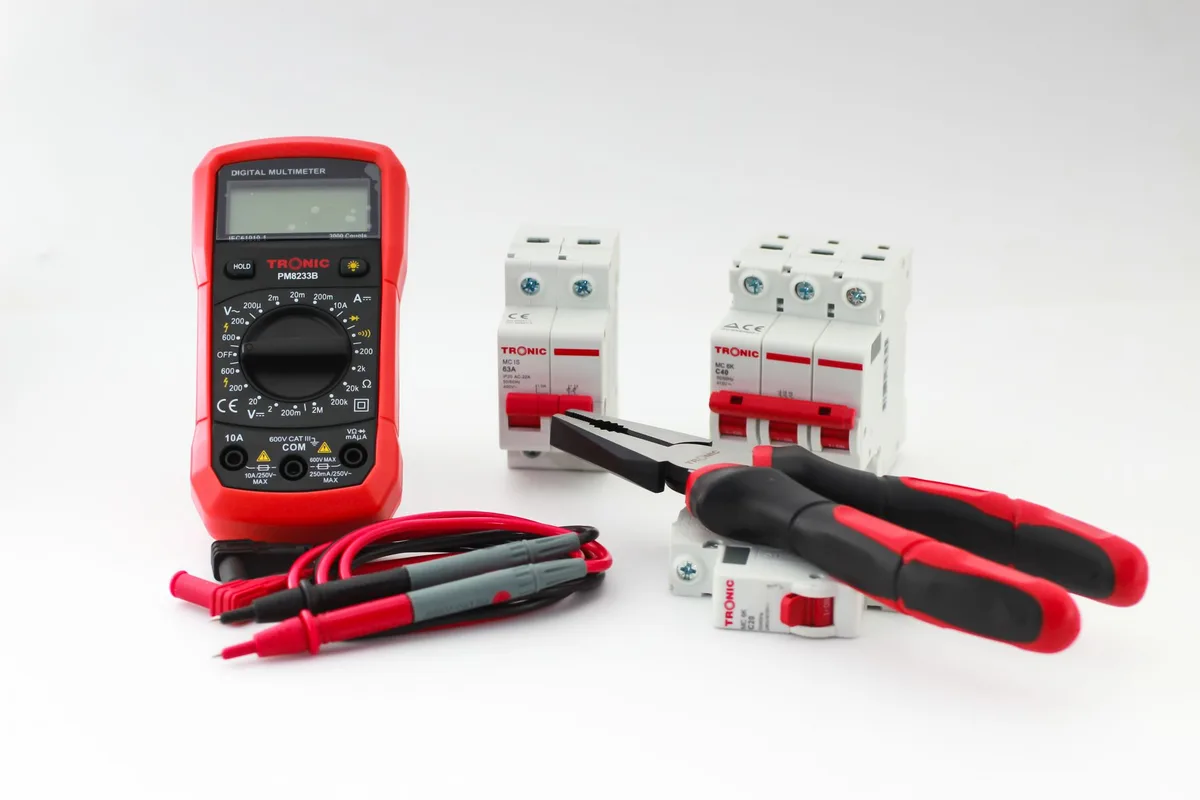

How to Set Up Your Multimeter Before You Probe

Get the setup wrong and your readings mean nothing. Take thirty seconds to dial it in first.

Follow these steps:

• Plug the black lead into COM and the red lead into the V/Ω jack.
• Turn the dial to DC volts (a V with straight lines above it).
• On a manual-range meter, pick the 2V or 200mV range for fine readings.
• Auto-ranging meters handle this for you.
• Check your leads. Frayed or loose probes throw false numbers.

One quick note on safety. This voltage drop method is for low-voltage DC systems, like a standard 12V car. Never poke around a high-voltage hybrid or EV system with a basic meter.

The CAT rating on cheap meters isn't built for it.

If you're new to reading a meter, get comfortable with taking a basic battery reading first. And when you need to tap into a live wire without piercing it, learning to use back probe pins keeps your connections clean and safe.

Step-by-Step: Running a Voltage Drop Test on a Ground

This is the test that catches what beeps and ohms miss. You'll keep the circuit powered so the ground works under real load. Here's the flow for a typical 12V ground.

1. Set the meter to DC volts, 2V or 200mV range.
2. Turn on the circuit you're testing. For a headlight ground, switch the lights on.
3. Touch the black probe to the battery negative terminal.
4. Touch the red probe to the ground point you're checking.
5. Read the number. That's your voltage drop across the ground path.

Keep the load running while you read. If you're testing a starter ground, have a helper crank the engine for a second while you watch the meter.

For fine work, back probe the connector instead of piercing the wire. This keeps the joint sealed and gives a cleaner reading. Wiggle the wire as you read.

A jumping number points to a loose or corroded spot right there.

Reading the Numbers: What Counts as a Good vs Bad Ground

A good ground drops almost nothing. Anything over about 0.2 volt on a single connection is a red flag. The higher the number climbs, the worse the corrosion or looseness.

Here's a rough guide for a 12V system under load:

One rule of thumb from automotive diagnostics: total voltage drop across a full circuit should stay under about 0.5 volt. The ground side alone should be a fraction of that. If the ground eats half your budget, you've found your fault.

Compare a suspect ground to a known-good one nearby. If your engine ground reads 0.4V but the battery ground reads 0.05V, the difference tells the story.

Your Decision Path: Which Test to Run for Your Situation

The right test depends on what you're chasing. Match the method to the fault and you'll save yourself hours.

Testing a Chassis or Battery Ground

Start here for slow cranking or dead-feeling electrics. Run a voltage drop test from the battery negative to the engine block, then to the chassis. Have someone crank the engine while you read.

If the drop spikes over 0.3V during cranking, the main ground strap is your problem. This is also worth checking if your voltage sags hard on startup, since a weak ground mimics a weak battery.

Testing a Sensor or ECU Ground

Sensor grounds carry tiny currents, so voltage drop readings stay small. Here, resistance testing earns its place. With the key off, check resistance from the sensor ground pin back to a known-good ground.

Anything above 0.5 ohm can throw off a sensitive sensor. A bad ECU ground often triggers several unrelated fault codes at once. If you see a scatter of codes with no pattern, suspect a shared ground.

Chasing an Intermittent Ground

If the fault comes and goes, add the wiggle test. Set the meter on voltage drop, power the circuit, then flex and tap the ground wire and connector.

A stable ground holds its number. A failing one jumps as you move it. Heat and vibration expose these, so test when the engine's warm if the problem shows up after driving.

Common Mistakes That Give You a False Reading

Most bad diagnoses come from testing wrong, not from a broken meter. These slip-ups fool even careful people.

• Testing with the circuit off. No load means no voltage drop, so a bad ground looks perfect.
• Trusting the continuity beep. It chirps through corrosion that's still choking the circuit.
• Probing paint or rust instead of bare metal. You'll read the coating, not the connection.
• Using a known-bad reference point. If your "good" ground is also weak, everything looks fine.
• Loose or worn test leads adding their own resistance to the number.

Another common miss is blaming the ground when the real drain is elsewhere. If something's flattening the battery overnight, confirm your parasitic draw isn't too high before you tear into ground straps. And if charging seems off, a quick battery versus alternator check rules out the charging system first.

After You Find It: Cleaning, Tightening, or Replacing the Ground

Found the bad spot? The fix is usually simple mechanical work, not a new part. Most bad grounds come back to life with a good cleaning.

Work through it in order:

1. Disconnect the battery negative first. Always.
2. Unbolt the ground connection.
3. Scrub both surfaces to bare, shiny metal with a wire brush or emery cloth.
4. Remove any paint, rust, or crusty corrosion under the lug.
5. Reattach and torque the bolt snug. Loose is as bad as dirty.
6. Add a thin coat of dielectric grease to keep moisture out.

Then retest under load. The voltage drop should fall back under 0.1V. If it doesn't, the ground wire itself may be corroded inside and need replacing.

For a frayed or rusted strap, swap the whole cable rather than patching it. A fresh ground strap is cheap insurance against the same headache next winter.

Safety Checks Before You Touch a Live Circuit

Voltage drop testing means working on a powered circuit, so a few habits keep you safe. A 12V system won't shock you, but it can still burn, spark, or short.

• Keep tools and probes clear of both battery terminals at once.
• Never bridge positive and negative with a wrench or bare wire.
• Watch for hydrogen gas near the battery. No sparks, no smoking.
• Wear eye protection when working around battery acid.
• Keep your meter's CAT rating within the voltage you're testing.

If your battery looks puffed or misshapen, stop. A swollen or bulging battery is a hazard, and you shouldn't probe around it until it's dealt with. Handle that first, then chase the ground.

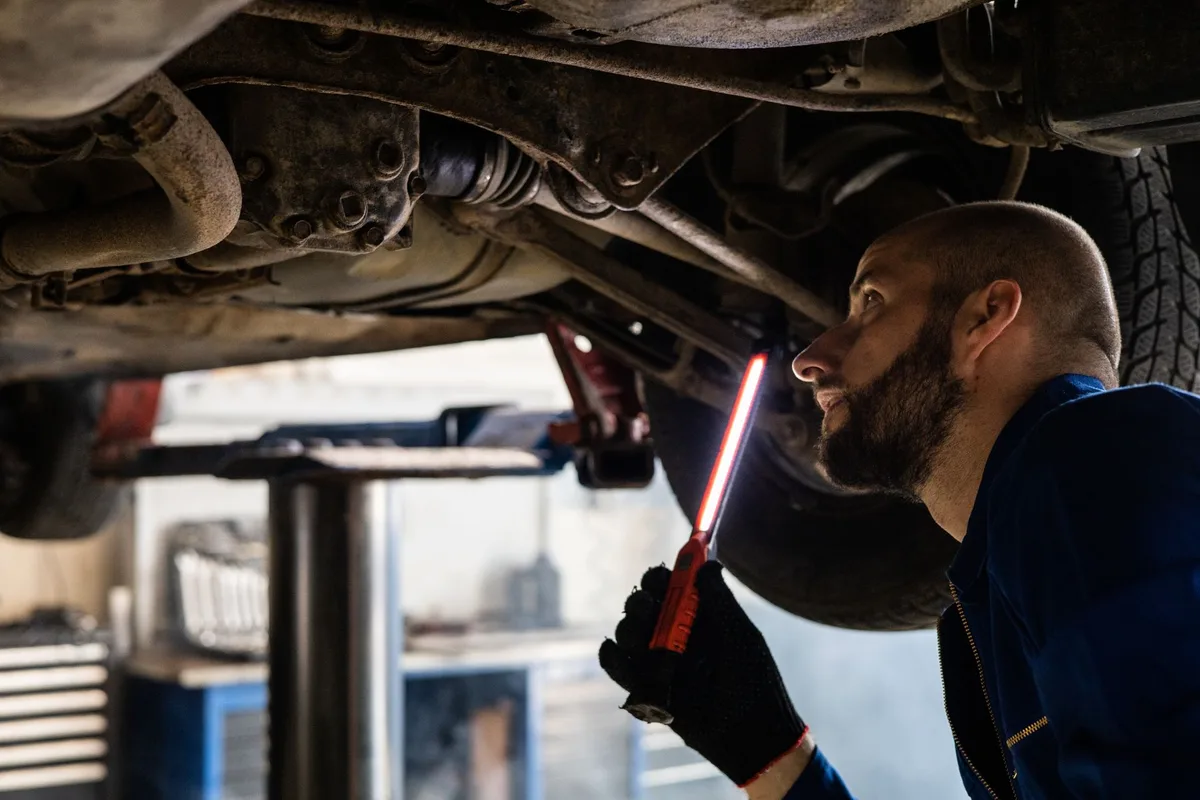

Multimeter vs Test Light: When Each One Makes Sense

A multimeter gives you numbers. A test light just tells you power is present or absent. Both have a place, but they answer different questions.

A test light is fast for confirming a circuit is live. It's cheap and hard to misread. But it can't measure a voltage drop, so it won't reveal a weak, high-resistance ground.

For hunting bad grounds, the multimeter wins every time. Use a test light for a fast confirmation, then grab the meter to measure the actual drop. A test light can't tell a marginal 0.4V ground from a clean one.

Frequently Asked Questions

Can a bad ground drain a car battery?

Yes, but indirectly. A bad ground usually causes weak performance and flickering, not a dead battery on its own. A true overnight drain points more to a parasitic draw.

Still, corroded grounds can let current find odd paths, so it's worth ruling out during a drain hunt.

What voltage drop is too much for a ground?

Anything over about 0.2 volt on a single ground connection is too much. A clean ground reads under 0.1V under load. Between 0.2 and 0.5V, clean it.

Over 0.5V, you've got a bad ground that's actively hurting the circuit and needs a fix.

Should I test a ground with the engine on or off?

Test with the circuit powered for a voltage drop reading. Grounds fail under load, so an off circuit hides the fault. For resistance checks on sensor grounds, the key stays off.

Match the test to the method: voltage drop needs power, ohms needs none.

Can I test a ground without disconnecting the battery?

Yes, voltage drop testing needs the battery connected and the circuit live. You only disconnect the battery when cleaning or replacing a ground connection. Compare readings against a known-good healthy voltage number so the battery itself isn't skewing your results.

Why does my ground pass continuity but still cause problems?

Because continuity only checks that some current can pass, not how much. A corroded ground beeps fine at rest, then chokes under real load. That hidden resistance is exactly what a voltage drop test exposes.

The beep tells you it's connected, not that it's good.

Quick Decision Guide: From Symptom to Fix

Not sure where to start? Follow the fault to the right test.

• Slow cranking or dead electrics: voltage drop test the main battery and engine grounds under crank.
• Flickering or dim lights: voltage drop test that circuit's ground with the load on.
• Odd sensor codes: resistance test the sensor ground with the key off.
• Comes and goes: run the wiggle test on voltage drop while flexing the wire.

Once you find a drop over 0.2V, clean the connection to bare metal, tighten it, and retest. If the number won't fall below 0.1V after cleaning, replace the ground cable.

Keep it simple. Power the circuit, measure the drop, and let the numbers point you to the weak link. A good ground is quiet and reads near zero, so anything else is your answer.
