Car Battery Voltage When Running: What’s Normal?

A car battery voltage when running should sit between 13.5 and 14.7 volts. If your multimeter shows a number in that window with the engine idling, your alternator is doing its job. Anything well below or above that range points to a charging problem, and the exact reading tells you where to look next.

That range comes straight from charging standards developed by SAE International, and nearly every manufacturer spec sheet lands inside it. The tricky part is that modern smart charging systems can dip below 13V on purpose, which fools a lot of DIYers. Let's start with the numbers, then work through what they mean for your car.

Quick Answer

Car battery voltage when running should read 13.5 to 14.7 volts. This is the alternator charging the battery. A resting battery reads about 12.6 volts.

Below 13 volts while running often means a charging problem. Above 15 volts means overcharging and needs immediate attention.

What Voltage Should Your Car Battery Show While the Engine's Running?

With the engine running, a healthy charging system holds the battery between 13.5 and 14.7 volts. That's the answer for most gas and diesel vehicles on the road as of 2026. The sweet spot on the majority of cars sits around 14.2 to 14.4 volts at idle.

Why is it a range and not one number? Charging voltage shifts with temperature, battery type, and electrical load. A cold morning pushes the voltage regulator toward the top of the range.

A hot engine bay in summer pulls it down toward 13.5V.

Battery chemistry matters too. AGM and EFB batteries in start-stop cars often charge at 14.4 to 14.8 volts, slightly higher than flooded batteries. If you're not sure which type you have, it helps to know how absorbed glass mat designs differ from a standard flooded battery, because the "normal" number shifts with the chemistry.

Here's the quick reference:

One thing to keep straight: the running number isn't really "battery voltage" at all. It's alternator output measured at the battery posts. That distinction is the key to everything else in this guide.

Why Running Voltage Is Higher Than Resting Voltage (And What Your Alternator Actually Does)

The engine-running voltage is higher because you're no longer measuring the battery. You're measuring the alternator pushing current into it. A 12V automotive battery at full charge naturally sits around 12.6 volts at rest.

To force current back into it, the charging system has to apply a higher voltage, the same way water only flows downhill.

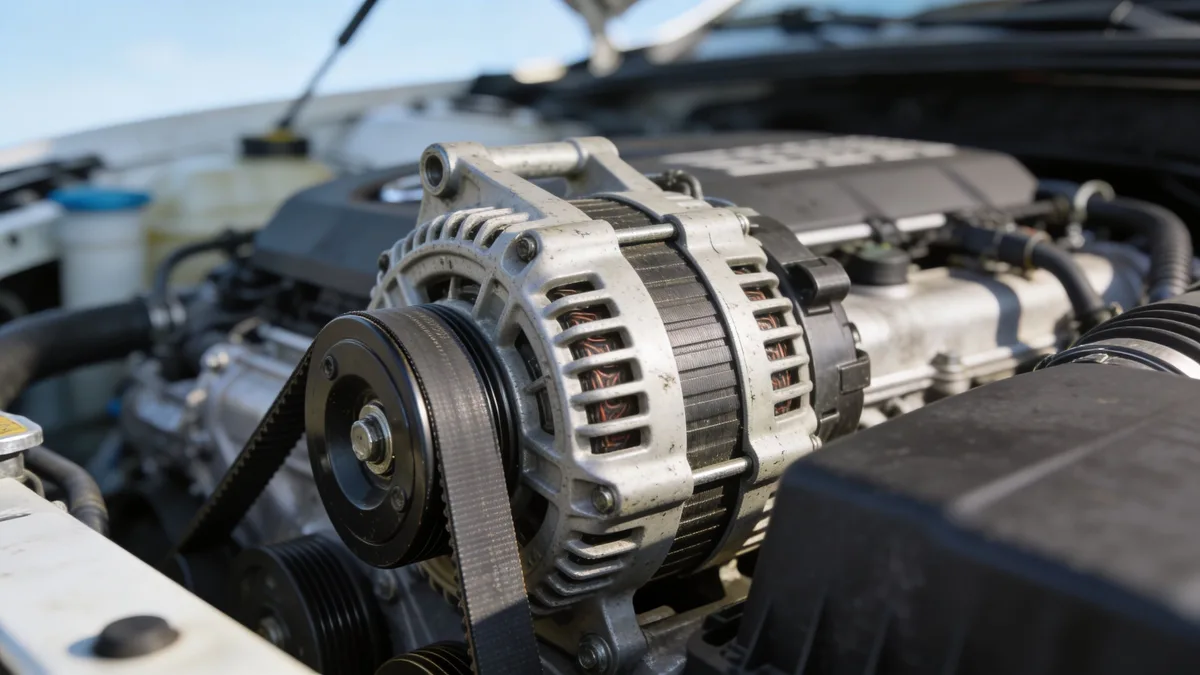

Here's the simple version of the loop. The engine spins the alternator through the serpentine belt. The alternator generates AC power, and its internal diode rectifier converts that to DC.

The voltage regulator then caps the output, typically around 14.2 to 14.4 volts, so the battery charges without cooking.

The battery's real job is short and violent: dump a few hundred amps into the starter for two seconds. After that, the alternator runs the whole car and refills what the start took out. Our research into charging system behavior shows a healthy alternator replaces the energy from a single start within about ten minutes of normal driving.

If you want the deeper story on plates, cells, and electrolyte, the chemistry inside the case is worth five minutes of your time.

So remember the two-number rule. Around 12.6V engine off means the battery is charged. Around 14V engine on means the alternator is charging.

Two different measurements, two different components, one test tool.

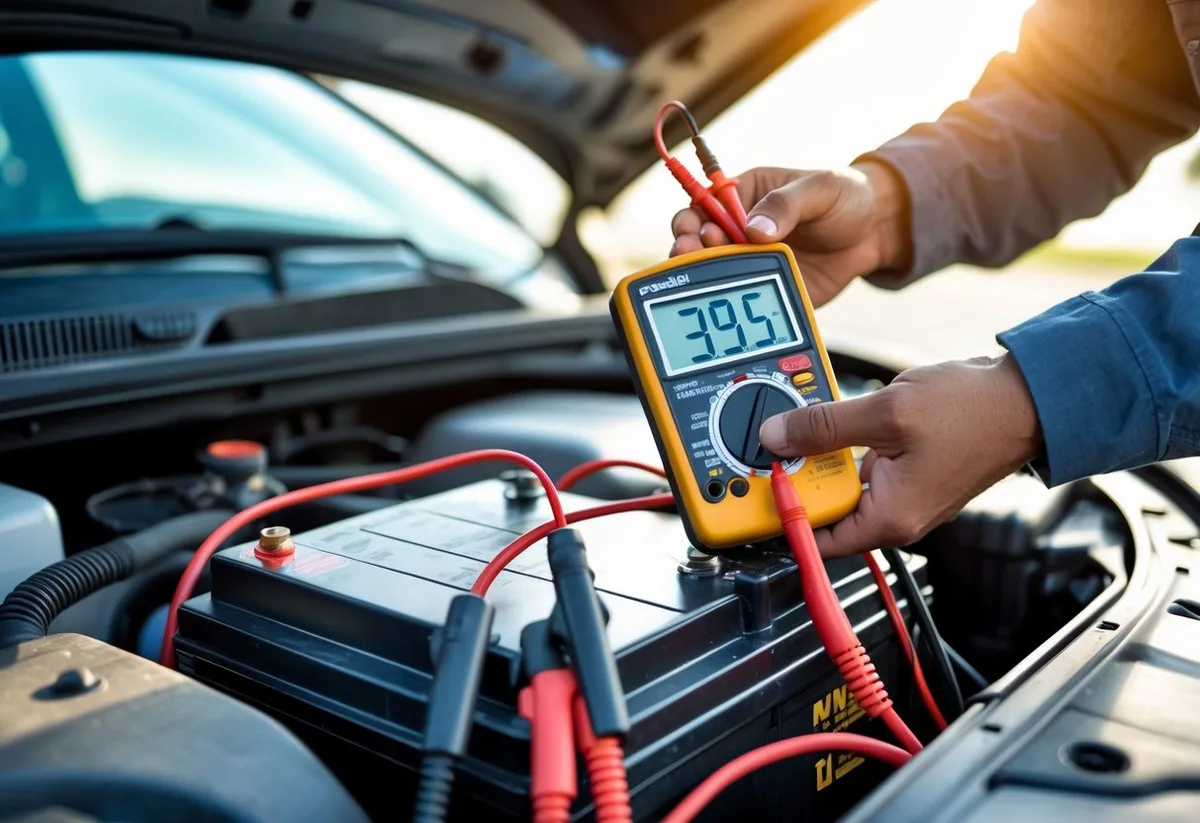

How to Test Your Battery Voltage With the Engine Running: 5-Minute Multimeter Walkthrough

You need a digital multimeter, ten minutes, and nothing else. A basic $15 meter is accurate enough for this job. Manufacturer specifications from meter makers like Fluke confirm even entry-level DMMs hold voltage accuracy well within the tolerance this test requires.

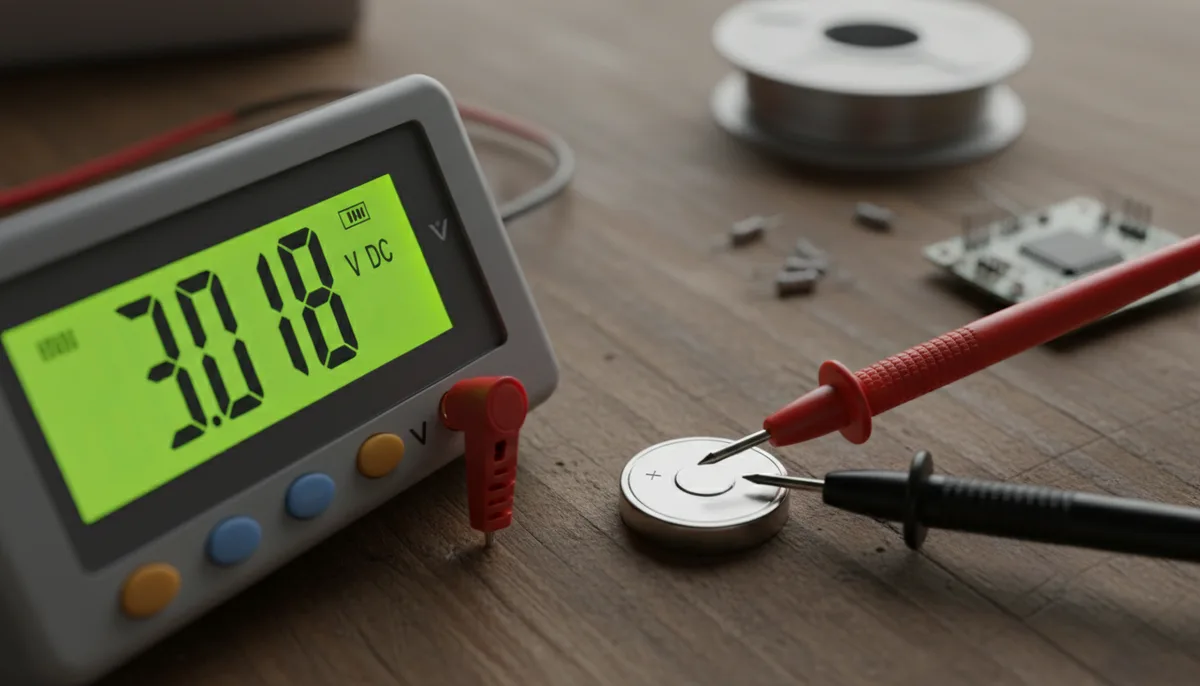

Setting Up Your Multimeter the Right Way

Turn the dial to DC volts. On many meters that's marked V with a straight line, or DCV. If those markings look unfamiliar, this quick primer on that DCV setting clears it up in two minutes.

Follow these steps:

1. Set the dial to DC volts, 20V range. Auto-ranging meters pick the range for you.
2. Plug the black lead into COM and the red lead into the VΩ jack.
3. Touch the red probe to the positive (+) battery post.
4. Touch the black probe to the negative (-) post.

Probe the metal posts themselves, not the clamps. Corrosion between post and clamp can skew your reading. If the display shows a negative number, you've just swapped the probes.

No harm done, flip them.

First time holding a meter? Work through the basics of taking readings before you open the hood. It'll make every number in this guide click faster.

Test at Idle, Then at 2,000 RPM, Then Under Load

One reading at idle isn't a diagnosis. You need multiple data points, because some charging failures only show up under stress.

Test 1, resting baseline. Engine off, car parked for 30+ minutes. Note the reading. You want 12.4 to 12.8V.

This tells you the battery's state of charge before the alternator gets involved.

Test 2, idle. Start the engine and measure again. The number should jump to 13.5 to 14.7V. That jump of a volt or more is the alternator kicking in.

Test 3, raised RPM. Have a helper hold the engine near 2,000 RPM. Voltage should stay in range or rise slightly. If it only reaches normal at higher RPM, the alternator may be weak at idle.

Test 4, full load. Back at idle, switch on headlights, blower fan on high, and rear defroster. Voltage will dip, and that's fine. It should stay above roughly 13.2V and shouldn't sag more than about half a volt.

A big sag under load is the classic sign of an alternator on its way out.

Keep your hands, sleeves, and meter leads well clear of the belt and pulleys the whole time. The full safety list comes later, but that one rule applies to every test.

Reading the Numbers: What Each Voltage Range Is Telling You

Now the decision-tree part. Find your running reading below and follow the branch that matches.

13.5 to 14.7V: Your Charging System Is Healthy

If you're in this window at idle and under load, you're done. The alternator, regulator, and connections are all pulling their weight. A reading that sits rock-steady around 14.2V is exactly what a healthy system looks like.

One caveat: this test clears the charging system, not the battery itself. A worn battery can still fail to hold a charge overnight or crank slowly in the cold. If your battery is past year four, check where it falls on a typical aging timeline and consider a load test at a parts store.

Below 13V While Running: Undercharging Territory

A reading under 13 volts with the engine running usually means the battery isn't getting charged. If the reading barely moved from your engine-off baseline, the alternator likely isn't contributing at all. Common culprits, in order of cheapness: corroded terminals, a loose or glazed belt, a bad ground, then the alternator itself.

Big exception: smart charging systems dip low on purpose. Before you condemn anything, read the smart charging section below. If your car is older than roughly 2010, though, a sub-13V running reading is a genuine red flag.

If it's undercharging, you're driving on borrowed battery time. Most cars can run 30 minutes to a couple of hours on battery alone before shutting down. Head home or to a shop, not onto the interstate.

Above 15V: Overcharging, Stop and Diagnose Now

Anything over 15 volts sustained means the voltage regulator has failed and the alternator is running unrestrained. This is the worst reading on the list. Overcharging boils the electrolyte, swells the battery, and can fry sensitive electronics throughout the car.

If you see 15.5V or more, stop driving the car. Don't wait for symptoms. A rotten-egg smell or a hot, bulging battery case means it's already venting.

On most modern cars the regulator lives inside the alternator, so the fix is usually a replacement alternator.

Voltage That Bounces or Dips Under Load

A reading that flickers, swings, or sags hard when you switch on accessories points to an intermittent problem. If the number bounces at idle, suspect a slipping belt or failing diodes inside the alternator. Failed diodes leak AC ripple into the system, and shops confirm this with an AC voltage check across the battery.

If voltage is fine at idle but collapses under load, the alternator can't produce its rated amperage anymore. It's producing volts but not amps. That alternator generally has weeks, not months, left.

Wiggle the battery cables while watching the meter too. A reading that jumps when a cable moves means a loose connection, which is a $0 fix.

Wait, Is Your Car's Low Voltage Actually Normal? Smart Charging Systems Explained

If your car was built in the last 10 to 15 years, a running voltage of 12.5 to 13.2V might be completely fine. Most late-model vehicles use smart charging, where the engine computer varies alternator output instead of holding a fixed 14.2V. The system charges hard when the battery is low, then backs off to near-zero charging once it's full.

Why? Fuel economy and battery life. Spinning an alternator at full output costs engine power, so the computer sheds that load whenever it can.

Cars with start-stop lean on this even harder, which is why they run enhanced flooded batteries or AGM units built for constant partial-state cycling.

So how do you tell smart charging from real undercharging? Use this if/then check:

• If voltage varies during a drive, say 14.8V after startup, then 12.8V cruising, then 14.5V when you brake, that's smart charging working as designed. Regenerative-style charging during deceleration is the giveaway.
• If voltage sits flat below 13V and never rises, even right after startup with headlights on, that's a genuine charging fault on any car.
• If the battery light is on, it's a fault regardless of the number. Smart systems don't trigger the warning light during normal low-voltage phases.

The cold-start test is the most reliable tell. Every charging system, smart or not, charges hard for the first few minutes after startup because the starter just drained the battery. No 14V+ reading in those first minutes means something's actually wrong.

Low Voltage While Running: Alternator, Battery, or Bad Connection?

A confirmed low reading has three possible causes, and the alternator is the most expensive of them. Work from cheapest to priciest. Our research into repair patterns shows a big share of replaced alternators tested fine afterward, because the real fault was a $0 connection issue.

Check the Terminals and Grounds Before You Blame the Alternator

Start at the battery posts. White, green, or blue crust on the terminals adds resistance, and resistance drops voltage before it ever reaches the battery. Disconnect the cables (negative first), scrub the posts and clamps with a wire brush, then retighten until the clamps won't twist by hand.

Now chase the grounds. Follow the negative cable to where it bolts to the body or engine block. A loose or rusty ground strap mimics a dying alternator almost perfectly.

Here's a quick confirmation test: measure from the alternator's output stud to the battery positive post with the engine running. More than about 0.3V of difference means the fault is in the wiring between them, not the alternator itself.

Belt Problems That Mimic Alternator Failure

The alternator only makes power if the belt spins it at full speed. If the serpentine belt is glazed, cracked, or loose, it slips under load and the voltage sags. The classic symptom is a squeal at startup or when you switch on the AC, paired with a reading that drops when accessories come on.

Engine off, inspect the belt's ribbed side. Shiny, glassy ribs mean glazing. Press the longest belt run with your thumb, and more than about a half inch of deflection suggests a weak tensioner.

A belt runs $25 to $60, which makes it a much happier diagnosis than an alternator.

How to Tell a Dying Alternator From a Dying Battery

The jump in your readings tells you which one is guilty. If resting voltage is healthy near 12.6V but running voltage stays under 13V, the alternator side is failing. If running voltage is a solid 14V but the resting reading keeps sinking to 12.2V or lower, the battery can't hold what it's given.

Use this if/then split:

• If the car needs a jump, then runs fine and shows 14V, then dies again overnight, that's the battery.
• If the battery light comes on while driving and voltage falls in real time, that's the alternator.
• If both readings look bad, fix the charging fault first. A good alternator can't be judged through a dead battery, and a good battery gets ruined by a bad alternator.

Still torn? Most US parts chains will test both for free with a conductance tester. That test also checks cold cranking amps, and it's worth understanding that CCA rating before you read the printout, since it's the number that decides pass or fail.

High Voltage While Running: Why a Failed Regulator Is an Emergency

Sustained voltage above 15V means the regulator has lost control, and every mile you drive makes it worse. The alternator is now feeding the battery more than it can absorb. The excess energy turns into heat and gas inside the case.

The damage stacks up fast. First the electrolyte boils off, which permanently kills capacity in a flooded battery. Then the case swells and can vent hydrogen gas, which is flammable.

Meanwhile, every module in the car eats voltage it was never designed for, and modern vehicles carry dozens of them.

Watch for these overcharge symptoms alongside the high reading:

• Headlights noticeably brighter than normal, or bulbs burning out repeatedly
• A sharp rotten-egg (sulfur) smell under the hood
• A battery case that looks bloated or feels hot to the touch
• Dash gauges acting erratic or warning lights flickering

If the meter shows 15.5V or more, park the car and arrange a tow or a very short drive to a shop. On most vehicles the regulator is built into the alternator, so the repair is an alternator replacement at roughly $300 to $800 installed. Skip the delay and you'll often add a $150 to $300 battery to that bill, because an overcharged battery rarely survives.

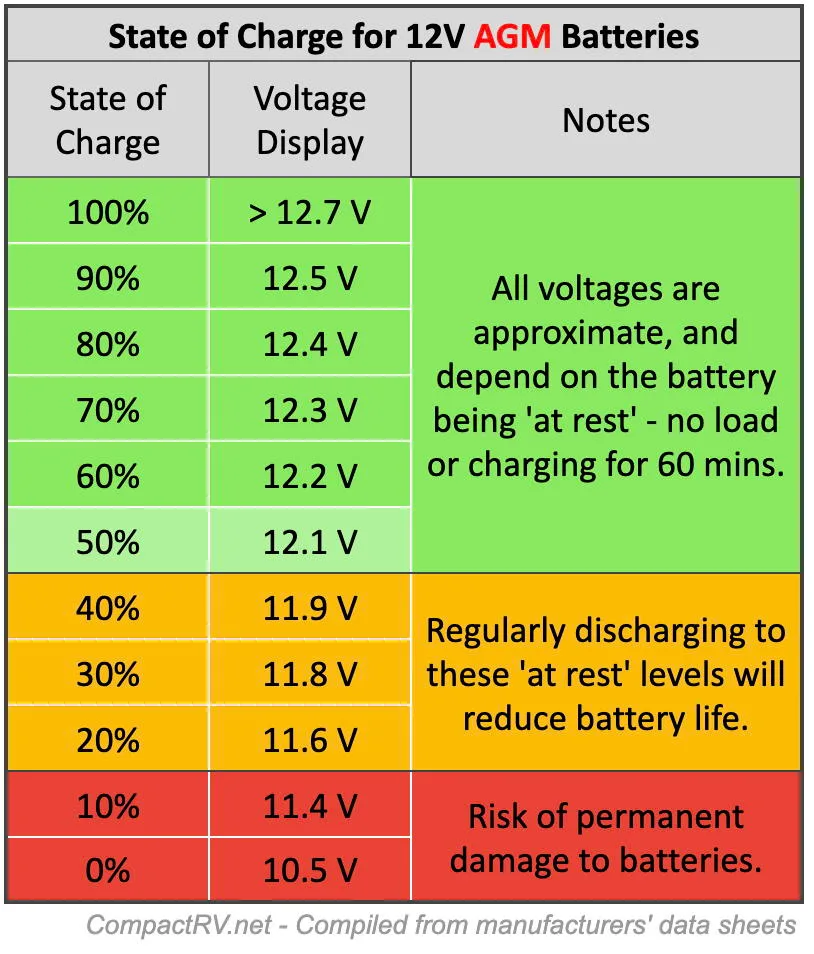

Voltage Chart: Resting, Cranking, and Running Numbers Side by Side

Save this chart. It covers every state your battery moves through in a normal day.

Two notes on using it. Resting numbers only count after the car sits 30+ minutes, because surface charge inflates readings taken right after a drive. And the state-of-charge percentages apply to flooded batteries at room temperature.

AGM units read roughly 0.1V higher across the board.

The cranking row deserves a highlight. That 9.6V floor is the standard pass mark at around 70°F, and it drops in cold weather. A battery that dips to 8V during cranking will still start the car, but it's telling you it won't survive the next cold snap.

Cross-check that against how long batteries typically last and you'll usually find it's right on schedule.

Mistakes That Lead to Replacing the Wrong $500 Part

The most expensive mistakes in charging diagnosis are all avoidable with the readings you've already taken. These are the ones that show up over and over in aggregate repair feedback:

• Testing right after a jump-start. Surface charge makes a dying battery read 13V+. Let the car sit 30 minutes, or run the headlights for two minutes first, then test.
• Condemning a smart-charging alternator. A 12.8V cruise reading on a 2018 car is normal. Apply the cold-start test from earlier before buying anything.
• Skipping the connections. Ten minutes with a wire brush has saved countless people an $800 alternator job. Always clean terminals and check grounds first.
• Trusting the dash voltmeter. Factory gauges are heavily damped and often read half a volt off. Only a meter at the posts counts.
• Using the wrong meter mode. AC volts or the amps jack gives nonsense readings, and the amps jack can blow the meter's fuse. If your dial has you second-guessing, run through a first-time meter setup before testing.
• Replacing the battery to fix a charging problem. A new battery dies in days if the alternator is undercharging. Confirm 13.5V+ running voltage before spending battery money.

One more classic: buying a replacement battery in the wrong spec. If the diagnosis does point to the battery, match the original's physical group size and chemistry rather than grabbing whatever's on sale.

Can You Keep Driving? A Quick Decision Guide by Voltage Reading

Your reading answers the "drive or park" question directly. Here's the honest risk call for each branch:

• 13.5 to 14.7V and steady: Drive normally. Nothing's wrong.
• 12.5 to 13.2V on a modern car, varies while driving: Drive normally. That's smart charging.
• Below 13V, confirmed fault, no battery light yet: Short trips only. Head straight home or to a shop. You're running on stored battery power, and a full battery holds roughly 30 to 90 minutes of engine-on load.
• Battery light on and voltage falling: Drive only as far as safety requires. Kill the AC, blower, and stereo to stretch the remaining charge. When voltage hits about 11V, modern engine computers start shutting down, sometimes mid-drive.
• Above 15V: Park it now. Overcharging destroys the battery and threatens every electronic module in the car. This is the one reading where continuing to drive actively multiplies the repair bill.

If/then for the stranded-risk math: if the car starts fine and charges fine but readings sag only under full load, then you have weeks to schedule the repair. If it needed a jump this morning and shows under 13V running, then today is the deadline, not this weekend.

When to Skip the DIY Test and Get a Professional Charging System Check

Hand it off when the multimeter can't see the problem anymore. Your voltage test finds most faults, but a few failures hide from a simple DC reading and need shop-grade equipment.

Go professional in these cases:

• Suspected diode failure. Confirming ripple requires an AC voltage check or an oscilloscope. More than about 0.1V AC across the battery means bad diodes, and that call is easier with shop tools.
• Intermittent battery light. A fault that appears once a week needs a scan tool that logs charging data over time, not a snapshot reading.
• Smart charging ambiguity. If your cold-start test is inconclusive, a shop can command the alternator to full output through the OBD-II port and settle it in minutes.
• Repeated dead batteries with a healthy 14V reading. That pattern points to a parasitic draw, which is a different test entirely and a common DIY dead end.
• Anything over 15V. You already know the regulator failed. The shop visit is about confirming nothing else got cooked.

Free parts-store tests sit in the middle. Their conductance testers grade the battery and take a quick charging reading, which is plenty for a straightforward battery-versus-alternator call. What they won't do is trace a bad ground or diagnose a PCM-controlled charging strategy.

Price the decision honestly. A shop's charging system diagnosis typically runs $50 to $150 and often gets credited toward the repair. Compare that to guessing wrong on an $800 alternator, and the math usually favors the diagnosis.

Safety Rules When Testing a Running Engine

A running-engine voltage test is safe when you respect two things: the spinning belt and the battery itself. Neither forgives carelessness.

Follow these rules every time:

• Keep everything clear of the belt and pulleys. No loose sleeves, no dangling meter leads, no jewelry, no long hair untied. The serpentine belt system will grab anything it touches.
• Never disconnect a battery cable while the engine runs. The old "pull the cable to test the alternator" trick causes a load-dump voltage spike that can destroy the PCM and other modules on modern cars.
• No sparks or flames near the battery. Charging batteries vent hydrogen gas. Safety guidance from Battery Council International treats every battery top as a potential ignition zone.
• Wear eye protection. Electrolyte is sulfuric acid. A swollen or venting battery raises the stakes considerably.
• Set the meter before you connect it. DC volts, correct jacks, every time. Probing the posts with the leads in the amps jack creates a direct short. That mistake is the classic reason a meter's fuse blows mid-test.
• Work in a ventilated space with the parking brake set. Exhaust builds fast in a closed garage, and a helper revving to 2,000 RPM demands a properly secured car.

None of this makes the test difficult. It's two probe tips on two battery posts. The rules exist because the engine bay around those posts doesn't pause while you measure.

Frequently Asked Questions About Car Battery Voltage While Running

Is 13.2 volts good when the car is running?

It's borderline. On an older car with a fixed-output alternator, 13.2V is the low edge of acceptable and worth rechecking under load. On a modern car with smart charging, 13.2V during normal cruising is completely fine.

Confirm with the cold-start test: voltage should exceed 14V right after startup.

Is 14.7 volts too high while driving?

No. A reading of 14.7V sits at the top of the normal charging range, and it's common in cold weather or on AGM-equipped vehicles. Manufacturer specs for AGM charging often reach 14.8V.

Only worry when readings climb past 15.0V and stay there, which signals a failing voltage regulator.

Why does my voltage drop when I turn on the AC?

A small dip is normal. The AC compressor and blower add both mechanical and electrical load, so voltage briefly sags before the regulator compensates. A drop to around 13.5V is healthy.

A plunge below 13V that stays low points to a weak alternator, a slipping belt, or a poor connection.

Can a car run with a bad alternator?

Yes, briefly. The engine will run off stored battery power for roughly 30 to 90 minutes, less at night with headlights on. Voltage falls the whole time, and computers begin shutting down near 11V.

Treat it as limp-home range only, and switch off every accessory you can spare.

Why does my car read 12.8 volts while driving?

Two possibilities. On most vehicles built in the last decade, that's the smart charging system deliberately resting a full battery, and readings will rise again when you brake or after cold starts. On older cars with fixed-output alternators, a flat 12.8V running reading means the alternator isn't charging.

Diagnose it the same day.

Does the running voltage tell me my battery's health?

Not directly. Running voltage grades the alternator and regulator, not the battery. Battery health shows up in the resting reading, cranking performance, and a proper load test.

A car can show a perfect 14.4V while running with a battery that dies overnight, so test both numbers before buying parts.
